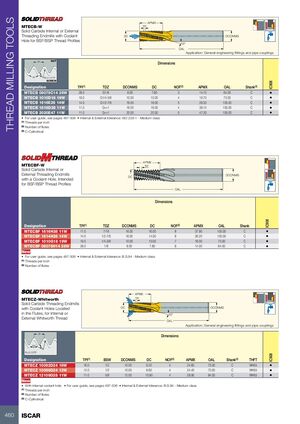

THREAD MILLING TOOLS APMX MTECB-W TP Solid Carbide Internal or External Threading Endmills with Coolant DC DCONMS Hole for BSF/BSP Thread Profiles 15° OAL Application: General engineering fittings and pipe couplings TP NUT Dimensions 55˚ RE=0.137TP SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTECB 08078C14 28W 28.0 G1/8 8.00 7.80 3 14.10 64.00 C • MTECB 1010D16 19W 19.0 G1/4-3/8 10.00 10.00 4 16.70 73.00 C • MTECB 1616E26 14W 14.0 G1/2-7/8 16.00 16.00 5 26.30 105.00 C • MTECB 1616D38 11W 11.0 G=>1 16.00 16.00 4 38.10 105.00 C • MTECB 2020E47 11W 11.0 G=>1 20.00 20.00 5 47.30 105.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ISO 228-1 - Medium class (1) Threads per inch (2) Number of flutes (3) C-Cylindrical APMX MTECBF-W TP Solid Carbide Internal or External Threading Endmills DCONMS DC with a Coolant Hole. Intended for BSF/BSP Thread Profiles OAL Dimensions IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank MTECBF 1616H38 11W 11.0 7/18 16.00 16.00 8 37.90 105.00 C • MTECBF 1614H26 14W 14.0 1/2-7/8 16.00 14.00 8 26.20 105.00 C • MTECBF 1010G16 19W 19.0 1/4-3/8 10.00 10.00 7 16.00 73.00 C • MTECBF 08078H14 28W 28.0 1/8 8.00 7.80 8 14.00 64.00 C • New • For user guide, see pages 497-506 • Internal & External tolerance: B.S.84 - Medium class (1) Threads per inch (2) Number of flutes APMX MTECZ-Whitworth TP Solid Carbide Threading Endmills with Coolant Holes Located DC DCONMS in the Flutes, for Internal or 15° External Whitworth Thread OAL Application: General engineering fittings and pipe couplings P Dimensions 55° R=0.137P IC908 Designation TPI(1) BSW DCONMS DC NOF(2) APMX OAL Shank(3) THFT MTECZ 10092D24 16W 16.0 1/2 10.00 9.20 4 24.60 73.00 C WH55 • MTECZ 10086D24 12W 12.0 1/2 10.00 8.60 4 24.40 73.00 C WH55 • MTECZ 12109D28 11W 11.0 5/8 12.00 10.90 4 28.90 84.00 C WH55 • New • With internal coolant hole • For user guide, see pages 497-506 • Internal & External tolerance: B.S.84 - Medium class (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 460 ISCAR
