Фрезерные инструменты Iscar 2026 - страница 343

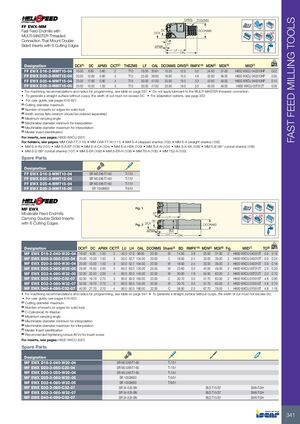

FAST FEED MILLING TOOLS DRVS THSZMS FF EWX-MM Fast Feed Endmills with DC DCONMS DCX Rd° MULTI-MASTER Threaded Connection That Mount Double- 17˚ Sided Inserts with 6 Cutting Edges APMX LF OAL kg Designation DCX(1) DC APMX CICT(2) THSZMS LF OAL DCONMS DRVS(3) RMPX°(4) MDN(5) MDX(6) MIID(7) FF EWX D16-2-MMT10-04 16.00 8.60 0.80 2 T10 19.50 30.81 15.20 12.0 5.0 24.60 31.00 H600 WXCU 040310HP 0.02 FF EWX D20-3-MMT12-04 20.00 12.60 0.80 3 T12 25.00 38.80 18.80 15.0 4.8 32.60 39.00 H600 WXCU 040310HP 0.05 FF EWX D25-4-MMT15-04 25.00 17.60 0.80 4 T15 30.00 47.00 23.90 19.0 3.3 42.60 49.00 H600 WXCU 040310HP 0.10 FF EWX D25-3-MMT15-05 25.00 15.00 1.00 3 T15 30.00 47.00 23.90 19.0 5.0 40.00 49.00 H600 WXCU 05T312T 0.09 • For machining recommendations and radius for programming, see table on page 597 • Do not apply lubricant to the MULTI-MASTER threaded connection. • To generate a straight surface without cusps, the width of cut must not exceed DC • For adaptation options, see page 303 • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Width across flats (wrench should be ordered separately) (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification For inserts, see pages: H600 WXCU (597) For holders, see pages: MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation FF EWX D16-2-MMT10-04 SR M2.5X6-T7-60 T-7/51 FF EWX D20-3-MMT12-04 SR M2.5X6-T7-60 T-7/51 FF EWX D25-4-MMT15-04 SR M2.5X6-T7-60 T-7/51 FF EWX D25-3-MMT15-05 SR 10508600 T-9/51 MF EWX Fig. 1 Moderate Feed Endmills 30° Rd° LH Carrying Double-Sided Inserts DC with 6 Cutting Edges Fig. 2 DCX DCONMS APMX BD LU OAL Designation DCX(1) DC APMX CICT(2) LU LH OAL DCONMS Shank(3) BD RMPX°(4) MDN(5) MDX(6) Fig. MIID(7) TQ(8) kg MF EWX D16-2-040-W20-04 16.00 9.00 1.50 2 40.0 47.0 99.00 20.00 W 14.90 3.8 25.00 31.00 2 H600 WXCU 040310T 0.9 0.16 MF EWX D20-3-050-C20-04 20.00 13.00 1.50 3 50.0 52.7 134.00 20.00 C 18.90 2.4 33.00 39.00 2 H600 WXCU 040310T 0.9 0.24 MF EWX D20-3-050-W20-04 20.00 13.00 1.50 3 50.0 52.7 104.00 20.00 W 18.90 2.4 33.00 39.00 2 H600 WXCU 040310T 0.9 0.18 MF EWX D25-3-060-W25-05 25.00 15.50 2.00 3 60.0 63.0 120.00 25.00 W 23.60 3.0 40.50 49.00 2 H600 WXCU 05T312T 2.0 0.33 MF EWX D32-4-080-W32-05 32.00 22.50 2.00 4 80.0 83.0 145.00 32.00 W 30.60 1.9 54.50 63.00 2 H600 WXCU 05T312T 2.0 0.70 MF EWX D32-3-080-C32-07 32.00 19.70 2.70 3 80.0 83.0 165.00 32.00 C 30.70 3.0 51.70 63.00 2 H600 WXCU 070515T 4.8 0.80 MF EWX D32-3-080-W32-07 32.00 19.70 2.70 3 80.0 83.0 145.00 32.00 W 30.70 3.0 51.70 63.00 2 H600 WXCU 070515T 4.8 0.70 MF EWX D40-4-090-C32-07 40.00 27.70 2.70 4 90.0 92.0 190.00 32.00 C 36.80 2.0 67.70 79.00 1 H600 WXCU 070515T 4.8 1.16 • For machining recommendations and radius for programming, see table on page 597 • To generate a straight surface without cusps, the width of cut must not exceed DC • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) C-Cylindrical, W-Weldon (4) Maximum ramping angle (5) Machinable diameter minimum for interpolation (6) Machinable diameter maximum for interpolation (7) Master insert identification (8) Recommended tightening torque (N*m) for insert screw For inserts, see pages: H600 WXCU (597) Spare Parts Designation MF EWX D16-2-040-W20-04 SR M2.5X6-T7-60 T-7/51 MF EWX D20-3-050-C20-04 SR M2.5X6-T7-60 T-7/51 MF EWX D20-3-050-W20-04 SR M2.5X6-T7-60 T-7/51 MF EWX D25-3-060-W25-05 SR 10508600 T-9/51 MF EWX D32-4-080-W32-05 SR 10508600 T-9/51 MF EWX D32-3-080-C32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH MF EWX D32-3-080-W32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH MF EWX D40-4-090-C32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH 341
