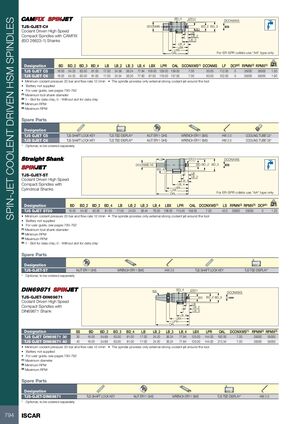

BD_4 ER11 SPIN-JET COOLENT DRIVEN HSM SPINDLES DCONXWS TJS-GJET-C# DCONMS BD_2 BD_3 BD Coolant Driven High Speed LB Compact Spindles with CAMFIX LB_2 (ISO 26623-1) Shanks LB_3 LB_4 LBX LPR OAL For ER-SPR collets use "AA" type only kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) DCONMS LF DCP(2) RPMN(3) RPMX(4) TJS GJET C5 16.00 54.25 63.00 81.00 17.00 24.58 36.24 77.84 109.00 129.00 159.00 7.00 50.00 112.00 0 35000 55000 1.50 TJS GJET C6 16.00 54.25 63.00 81.00 17.00 24.54 36.20 77.80 97.00 119.00 157.00 7.00 63.00 102.00 0 35000 55000 1.60 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum tool shank diameter (2) 1 - Slot for data chip, 0 - Without slot for data chip (3) Minimum RPM (4) Maximum RPM Spare Parts Designation TJS GJET C5 TJS SHAFT LOCK KEY TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 COOLING TUBE C5* TJS GJET C6 TJS SHAFT LOCK KEY TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 COOLING TUBE C6* * Optional, to be ordered separately LS ER11 DCONXWS DCONMS h6 BD BD_2 BD_3 BD_4 LB TJS-GJET-ST LB_2 Coolant Driven High Speed LB_3 Compact Spindles with LB_4 LBX Cylindrical Shanks LPR OAL For ER-SPR collets use "AA" type only kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) LS RPMN(2) RPMX(3) DCP(4) TJS GJET ST20 16.00 54.92 63.00 81.00 17.00 24.00 36.44 78.00 108.00 115.00 158.00 7.00 43.0 35000 55000 0 1.20 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum tool shank diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS-GJET-ST NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY TJS TSD DISPLAY* * Optional, to be ordered separately SS BD_4 ER11 DCONXWS TJS-GJET-DIN69871 BD BD_2 BD_3 Coolant Driven High Speed LB Compact Spindles with LB_2 DIN69871 Shank LB_3 LB_4 LBX LPR OAL Designation SS BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) RPMN(2) RPMX(3) TJS GJET DIN69871 30 30 16.00 54.69 63.00 81.00 17.00 24.20 36.24 77.84 125.00 144.00 192.00 7.00 35000 55000 TJS GJET DIN69871 40 40 16.00 54.69 63.00 81.00 17.00 24.20 36.24 77.84 125.00 144.00 212.54 7.00 35000 55000 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum diameter (2) Minimum RPM (3) Maximum RPM Spare Parts Designation TJS-GJET-DIN69871 TJS SHAFT LOCK KEY NUT ER11 GHS WRENCH ER11 SMS TJS TSD DISPLAY* HW 2.0 * Optional, to be ordered separately 794 ISCAR
