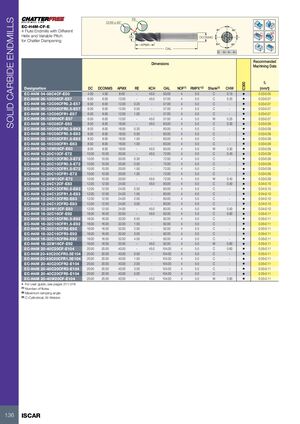

ТВЕРДОСПЛАВНЫЕ ФРЕЗЫ

EC-H4M-CF-E

Четырехзубые фрезы с различной спиралью и переменным шагом для подавления вибраций

Рекомендуемые режимы резания

Обозначение DC DCONMS APMX RE KCH OAL Зубьев RMPX° Хвостовик CHW IC900 fz (мм/зуб)
EC-H4M 04-08C4CF-E50 4.00 4.00 8.00 — 45.0 50.00 4 5.0 C 0.15 • 0.03–0.05
EC-H4M 06-12C06CF-E57 6.00 6.00 12.00 — 45.0 57.00 4 5.0 C 0.25 • 0.03–0.07
EC-H4M 06-12C06CFR0.2-E57 6.00 6.00 12.00 0.20 — 57.00 4 5.0 C — • 0.03–0.07
EC-H4M 06-12C06CFR0.5-E57 6.00 6.00 12.00 0.50 — 57.00 4 5.0 C — • 0.03–0.07
EC-H4M 06-12C06CFR1-E57 6.00 6.00 12.00 1.00 — 57.00 4 5.0 C — • 0.03–0.07
EC-H4M 06-12W06CF-E57 6.00 6.00 12.00 — 45.0 57.00 4 5.0 W 0.25 • 0.03–0.07
EC-H4M 08-16C08CF-E63 8.00 8.00 16.00 — 45.0 63.00 4 5.0 C 0.30 • 0.03–0.09
EC-H4M 08-16C08CFR0.3-E63 8.00 8.00 16.00 0.30 — 63.00 4 5.0 C — • 0.03–0.09
EC-H4M 08-16C08CFR0.5-E63 8.00 8.00 16.00 0.50 — 63.00 4 5.0 C — • 0.03–0.09
EC-H4M 08-16C08CFR1.5-E63 8.00 8.00 16.00 1.50 — 63.00 4 5.0 C — • 0.03–0.09
EC-H4M 08-16C08CFR1-E63 8.00 8.00 16.00 1.00 — 63.00 4 5.0 C — • 0.03–0.09
EC-H4M 08-16W08CF-E63 8.00 8.00 16.00 — 45.0 63.00 4 5.0 W 0.30 • 0.03–0.09
EC-H4M 10-20C10CF-E72 10.00 10.00 20.00 — 45.0 72.00 4 5.0 C 0.40 • 0.03–0.09
EC-H4M 10-20C10CFR0.3-E72 10.00 10.00 20.00 0.30 — 72.00 4 5.0 C — • 0.03–0.09
EC-H4M 10-20C10CFR0.5-E72 10.00 10.00 20.00 0.50 — 72.00 4 5.0 C — • 0.03–0.09
EC-H4M 10-20C10CFR1.5-E72 10.00 10.00 20.00 1.50 — 72.00 4 5.0 C — • 0.03–0.09
EC-H4M 10-20C10CFR1-E72 10.00 10.00 20.00 1.00 — 72.00 4 5.0 C — • 0.03–0.09
EC-H4M 10-20W10CF-E72 10.00 10.00 20.00 — 45.0 72.00 4 5.0 W 0.40 • 0.03–0.09
EC-H4M 12-24C12CF-E83 12.00 12.00 24.00 — 45.0 83.00 4 5.0 C 0.50 • 0.04–0.10
EC-H4M 12-24C12CFR0.5-E83 12.00 12.00 24.00 0.50 — 83.00 4 5.0 C — • 0.04–0.10
EC-H4M 12-24C12CFR1.5-E83 12.00 12.00 24.00 1.50 — 83.00 4 5.0 C — • 0.04–0.10
EC-H4M 12-24C12CFR2-E83 12.00 12.00 24.00 2.00 — 83.00 4 5.0 C — • 0.04–0.10
EC-H4M 12-24C12CFR3-E83 12.00 12.00 24.00 3.00 — 83.00 4 5.0 C — • 0.04–0.10
EC-H4M 12-24W12CF-E83 12.00 12.00 24.00 — 45.0 83.00 4 5.0 W 0.50 • 0.04–0.10
EC-H4M 16-32C16CF-E92 16.00 16.00 32.00 — 45.0 92.00 4 5.0 C 0.60 • 0.05–0.11
EC-H4M 16-32C16CFR0.5-E92 16.00 16.00 32.00 0.50 — 92.00 4 5.0 C — • 0.05–0.11
EC-H4M 16-32C16CFR1.5-E92 16.00 16.00 32.00 1.50 — 92.00 4 5.0 C — • 0.05–0.11
EC-H4M 16-32C16CFR2-E92 16.00 16.00 32.00 2.00 — 92.00 4 5.0 C — • 0.05–0.11
EC-H4M 16-32C16CFR3-E92 16.00 16.00 32.00 3.00 — 92.00 4 5.0 C — • 0.05–0.11
EC-H4M 16-32C16CFR4-E92 16.00 16.00 32.00 4.00 — 92.00 4 5.0 C — • 0.05–0.11
EC-H4M 16-32W16CF-E92 16.00 16.00 32.00 — 45.0 92.00 4 5.0 W 0.60 • 0.05–0.11
EC-H4M 20-40C20CF-E104 20.00 20.00 40.00 — 45.0 104.00 4 5.0 C 0.60 • 0.05–0.11
EC-H4M 20-40C20CFR0.5-E104 20.00 20.00 40.00 0.50 — 104.00 4 5.0 C — • 0.05–0.11
EC-H4M 20-40C20CFR1.5-E104 20.00 20.00 40.00 1.50 — 104.00 4 5.0 C — • 0.05–0.11
EC-H4M 20-40C20CFR2-E104 20.00 20.00 40.00 2.00 — 104.00 4 5.0 C — • 0.05–0.11
EC-H4M 20-40C20CFR3-E104 20.00 20.00 40.00 3.00 — 104.00 4 5.0 C — • 0.05–0.11
EC-H4M 20-40C20CFR5-E104 20.00 20.00 40.00 5.00 — 104.00 4 5.0 C — • 0.05–0.11
EC-H4M 20-40W20CF-E104 20.00 20.00 40.00 — 45.0 104.00 4 5.0 W 0.60 • 0.05–0.11

Примечания:

  • (1) Количество зубьев
  • (2) Максимальный угол врезания
  • (3) C — цилиндрический хвостовик, W — Weldon
