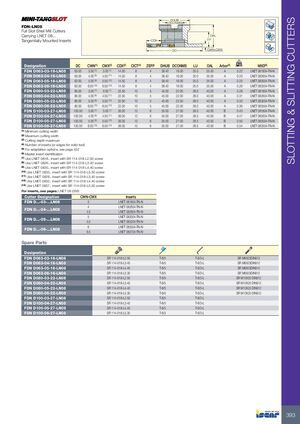

Фрезерные инструменты Iscar 2026 - страница 395

SLOTTING & SLITTING CUTTERS DHUB DCONMS FDN-LN08 Full Slot Shell Mill Cutters Carrying LNET 08... OAL LU Tangentially Mounted Inserts CDX DC CWN-CWX kg Designation DC CWN(1) CWX(2) CDX(3) CICT(4) ZEFP DHUB DCONMS LU OAL Arbor(5) MIID(6) FDN D063-03-16-LN08 63.00 3.00 (7) 3.00 (7) 14.50 8 4 38.40 16.00 25.0 35.00 A 0.22 LNET 081804-TN-N FDN D063-04-16-LN08 63.00 4.00 (8) 4.50 (11) 14.50 8 4 38.40 16.00 25.0 35.00 A 0.23 LNET 082604-TN-N FDN D063-05-16-LN08 63.00 5.00 (9) 5.50 (12) 14.50 8 4 38.40 16.00 25.0 35.00 A 0.25 LNET 083004-TN-N FDN D063-06-16-LN08 63.00 6.00 (10) 6.50 (13) 14.50 8 4 38.40 16.00 25.0 35.00 A 0.26 LNET 083504-TN-N FDN D080-03-22-LN08 80.00 3.00 (7) 3.00 (7) 22.50 10 5 45.00 22.00 28.0 40.00 A 0.28 LNET 081804-TN-N FDN D080-04-22-LN08 80.00 4.00 (8) 4.50 (11) 22.50 10 5 45.00 22.00 28.0 40.00 A 0.31 LNET 082604-TN-N FDN D080-05-22-LN08 80.00 5.00 (9) 5.50 (12) 22.50 10 5 45.00 22.00 28.0 40.00 A 0.33 LNET 083004-TN-N FDN D080-06-22-LN08 80.00 6.00 (10) 6.50 (13) 22.50 10 5 45.00 22.00 28.0 40.00 A 0.36 LNET 083504-TN-N FDN D100-03-27-LN08 100.00 3.00 (7) 3.00 (7) 26.00 12 6 55.00 27.00 28.5 40.00 B 0.43 LNET 081804-TN-N FDN D100-04-27-LN08 100.00 4.00 (8) 4.50 (11) 26.00 12 6 55.00 27.00 28.5 40.00 B 0.47 LNET 082604-TN-N FDN D100-05-27-LN08 100.00 5.00 (9) 5.50 (12) 26.00 12 6 55.00 27.00 28.5 40.00 B 0.50 LNET 083004-TN-N FDN D100-06-27-LN08 100.00 6.00 (10) 6.50 (13) 26.00 12 6 55.00 27.00 28.5 40.00 B 0.54 LNET 083504-TN-N (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation options, see page 432 (6) Master insert identification (7) Use LNET 0818.. insert with SR 114-018-L2.50 screw (8) Use LNET 0826.. insert with SR 114-018-L3.40 screw (9) Use LNET 0830.. insert with SR 114-018-L4.40 screw (10) Use LNET 0835.. insert with SR 114-018-L5.30 screw (11) Use LNET 0828.. insert with SR 114-018-L3.40 screw (12) Use LNET 0832.. insert with SR 114-018-L4.40 screw (13) Use LNET 0837.. insert with SR 114-018-L5.30 screw For inserts, see pages: LNET 08 (558) Cutter Designation CWN-CWX Inserts FDN D...-03-...LN08 3 LNET 081804-TN-N 4 LNET 082604-TN-N FDN D...-04-...LN08 4.5 LNET 082804-TN-N 5 LNET 083004-TN-N FDN D...-05-...LN08 5.5 LNET 083204-TN-N 6 LNET 083504-TN-N FDN D...-06-...LN08 6.5 LNET 083704-TN-N Spare Parts Designation FDN D063-03-16-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-04-16-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-05-16-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L SR M8X25DIN912 FDN D063-06-16-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L SR M8X25DIN912 FDN D080-03-22-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-04-22-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-05-22-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D080-06-22-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L SR M10X25 DIN912 FDN D100-03-27-LN08 SR 114-018-L2.50 T-6/5 T-6/3-L FDN D100-04-27-LN08 SR 114-018-L3.40 T-6/5 T-6/3-L FDN D100-05-27-LN08 SR 114-018-L4.40 T-6/5 T-6/3-L FDN D100-06-27-LN08 SR 114-018-L5.30 T-6/5 T-6/3-L 393
