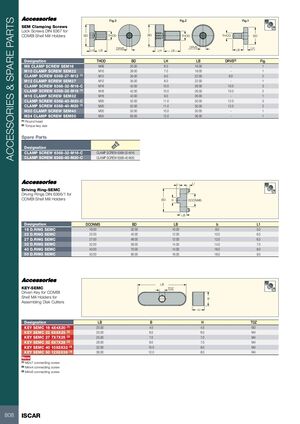

ACCESSORIES & SPARE PARTS Fig.3 Fig.2 Fig.1 SEM Clamping Screws Lock Screws DIN 6367 for COMBI Shell Mill Holders BD THOD BD THOD THOD BD DRVS DRVS LH LH LB LH LB LB Designation THOD BD LH LB DRVS(2) Fig. M8 CLAMP SCREW SEM16 M08 20.00 6.0 16.00 - 1 M10 CLAMP SCREW SEM22 M10 28.00 7.0 18.00 - 1 CLAMP SCREW 6368-27-M12 (1) M12 35.00 9.0 22.00 6.0 2 M12 CLAMP SCREW SEM27 M12 35.00 8.0 22.00 - 1 CLAMP SCREW 6368-32-M16-C M16 42.00 10.0 26.00 10.0 3 CLAMP SCREW 6368-32-M16 (1) M16 42.00 10.0 26.00 10.0 2 M16 CLAMP SCREW SEM32 M16 42.00 9.0 26.00 - 1 CLAMP SCREW 6368-40-M20-C M20 52.00 11.0 30.00 12.0 3 CLAMP SCREW 6368-40-M20 (1) M20 52.00 11.0 30.00 12.0 2 M20 CLAMP SCREW SEM40 M20 52.00 10.0 30.00 - 1 M24 CLAMP SCREW SEM50 M24 63.00 12.0 36.00 - 1 (1) Round head (2) Torque key size Spare Parts Designation CLAMP SCREW 6368-32-M16-C CLAMP SCREW 6368-32-M16 CLAMP SCREW 6368-40-M20-C CLAMP SCREW 6368-40-M20 L1 L1 Driving Ring-SEMC Driving Rings DIN 6366/1 for COMBI Shell Mill Holders BD b DCONMS LB Designation DCONMS BD LB b L1 16 D.RING SEMC 16.00 32.00 10.00 8.0 5.0 22 D.RING SEMC 22.00 40.00 12.00 10.0 6.0 27 D.RING SEMC 27.00 48.00 12.00 12.0 6.3 32 D.RING SEMC 32.00 58.00 14.00 14.0 7.0 40 D.RING SEMC 40.00 70.00 14.00 16.0 8.0 50 D.RING SEMC 50.00 90.00 16.00 18.0 9.0 LB KEY-SEMC TDZ Driven Key for COMBI Shell Mill Holders for B Assembling Disk Cutters H Designation LB B H TDZ KEY SEMC 16 4X4X20 (1) 20.00 4.0 4.0 M2 KEY SEMC 22 6X6X25 (2) 25.00 6.0 6.0 M4 KEY SEMC 27 7X7X25 (3) 25.00 7.0 7.0 M4 KEY SEMC 32 8X7X28 (3) 28.00 8.0 7.0 M4 KEY SEMC 40 10X8X32 (3) 32.00 10.0 8.0 M4 KEY SEMC 50 12X8X36 (3) 36.00 12.0 8.0 M4 New (1) M2x7 connecting screw (2) M4x4 connecting screw (3) M4x6 connecting screw 808 ISCAR
