Фрезерные инструменты Iscar 2026 - страница 526

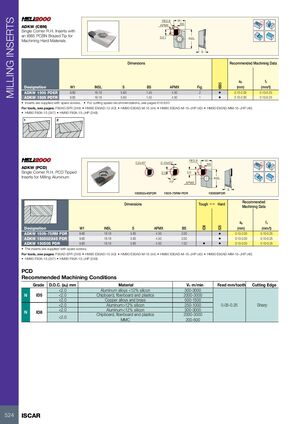

MILLING INSERTS RE0.8 W1 Rd° APMX BS ADKW (CBN) Single Corner R.H. Inserts with an IB85 PCBN Brazed Tip for 5.0 INSL Machining Hard Materials S Dimensions Recommended Machining Data ap fz IB85 Designation W1 INSL S BS APMX Fig. (mm) (mm/t) ADKW 1505 PDER 9.60 16.18 5.83 1.45 4.50 2 • 0.10-2.00 0.10-0.25 ADKW 1505 PDTR 9.60 16.18 5.83 1.45 4.50 1 • 0.10-2.00 0.10-0.25 • Inserts are supplied with spare screws. • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) 1 2 RE0.8 W1 0.2x45° 0.15x45° BS Rd° ADKW (PCD) Single Corner R.H. PCD Tipped 2.0 5.0 Inserts for Milling Aluminum INSL 15º APMX S 150502x45PDR 1505-75RM PDR 150508PDR Recommended Dimensions Tough 1 Hard Machining Data ap fz ID8 ID5 Designation W1 INSL S APMX BS (mm) (mm/t) ADKW 1505-75RM PDR 9.60 16.18 5.83 4.50 2.00 • 0.10-2.00 0.10-0.25 ADKW 150502X45 PDR 9.60 16.18 5.83 4.50 2.00 • 0.10-2.00 0.10-0.25 ADKW 150508 PDR 9.60 16.18 5.83 4.50 1.52 • • 0.10-2.00 0.10-0.25 • The inserts are supplied with spare screws. For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) PCD Recommended Machining Conditions Grade D.O.C. (ap) mm Material Vc m/min Feed mm/tooth Cutting Edge <2.0 Aluminum alloys <12% silicon 300-3000 N ID5 <2.0 Chipboard, fiberboard and plastics 2000-3000 <2.0 Copper alloys and brass 500-1500 <2.0 Aluminum>12% silicon 250-1000 0.05-0.25 Sharp <2.0 Aluminum<12% silicon 300-3000 N ID8 Chipboard, fiberboard and plastics 2000-3000 <2.0 MMC 200-600 524 ISCAR
