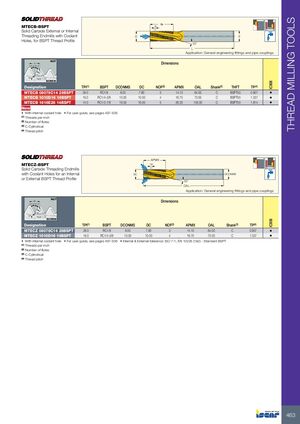

THREAD MILLING TOOLS ap MTECB-BSPT P Solid Carbide External or Internal Threading Endmills with Coolant D d Holes, for BSPT Thread Profile 15° L Application: General engineering fittings and pipe couplings NUT P Dimensions 27.5˚ 27.5˚ R=0.137P 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) BSPT DCONMS DC NOF(2) APMX OAL Shank(3) THFT TP(4) MTECB 08078C14 28BSPT 28.0 RC1/8 8.00 7.80 3 14.10 64.00 C BSPT55 0.907 • MTECB 1010D16 19BSPT 19.0 RC1/4-3/8 10.00 10.00 4 16.70 73.00 C BSPT55 1.337 • MTECB 1616E26 14BSPT 14.0 RC1/2-7/8 16.00 16.00 5 26.30 105.00 C BSPT55 1.814 • New • With internal coolant hole • For user guide, see pages 497-506 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical (4) Thread pitch APMX MTECZ-BSPT TP Solid Carbide Threading Endmills with Coolant Holes for an Internal DC DCONMS or External BSPT Thread Profile 15° OAL Application: General engineering fittings and pipe couplings NUT TP Dimensions 27.5˚ 27.5˚ RE=0.137TP 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) BSPT DCONMS DC NOF(2) APMX OAL Shank(3) TP(4) MTECZ 08078C14 28BSPT 28.0 RC1/8 8.00 7.80 3 14.10 64.00 C 0.907 • MTECZ 1010D16 19BSPT 19.0 RC1/4-3/8 10.00 10.00 4 16.70 73.00 C 1.337 • • With internal coolant hole • For user guide, see pages 497-506 • Internal & External tolerance: ISO 7-1, EN 10226 (1&2) - Standard BSPT (1) Threads per inch (2) Number of flutes (3) C-Cylindrical (4) Thread pitch 463
