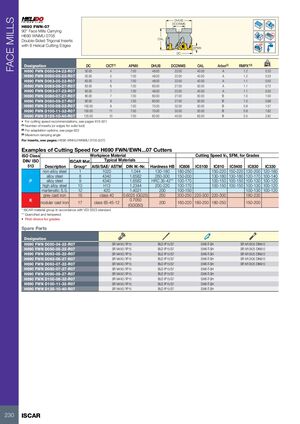

FACE MILLS DHUB DCONMS H690 FWN-07 90° Face Mills Carrying Rd° H690 WNMU 0705 OAL Double-Sided Trigonal Inserts with 6 Helical Cutting Edges APMX DC kg Designation DC CICT(1) APMX DHUB DCONMS OAL Arbor(2) RMPX°(3) H690 FWN D050-04-22-R07 50.00 4 7.00 48.00 22.00 40.00 A 1.2 0.33 H690 FWN D050-05-22-R07 50.00 5 7.00 48.00 22.00 40.00 A 1.2 0.33 H690 FWN D063-05-22-R07 63.00 5 7.00 48.00 22.00 40.00 A 1.1 0.50 H690 FWN D063-06-27-R07 63.00 6 7.00 60.00 27.00 50.00 A 1.1 0.72 H690 FWN D063-07-22-R07 63.00 7 7.00 48.00 22.00 40.00 A 1.1 0.50 H690 FWN D080-07-27-R07 80.00 7 7.00 60.00 27.00 50.00 B 1.0 1.00 H690 FWN D080-09-27-R07 80.00 9 7.00 60.00 27.00 50.00 B 1.0 0.98 H690 FWN D100-08-32-R07 100.00 8 7.00 70.00 32.00 50.00 B 0.8 1.57 H690 FWN D100-11-32-R07 100.00 11 7.00 70.00 32.00 50.00 B 0.8 1.62 H690 FWN D125-10-40-R07 125.00 10 7.00 82.00 40.00 63.00 B 0.5 2.82 • For cutting speed recommendations, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) For adaptation options, see page 622 (3) Maximum ramping angle For inserts, see pages: H690 WNHU/WNMU 0705 (537) Examples of Cutting Speed for H690 FWN/EWN...07 Cutters ISO Class Workpiece Material Cutting Speed Vc, SFM, for Grades DIN/ ISO ISCAR Mat. Typical Materials 513 Description Group* AISI/SAE/ ASTM DIN W.-Nr. Hardness HB IC808 IC5100 IC810 IC5400 IC830 IC330 non-alloy steel 1 1020 1.044 130-180 180-250 150-220 150-220 130-200 120-180 alloy steel 8 4340 1.6582 260-300 150-200 130-180 130-180 120-170 100-140 P alloy steel 9 4340 1.6582 HRC 35-42** 100-170 100-150 100-150 100-130 100-120 high alloy steel 10 H13 1.2344 200-220 100-170 100-150 100-150 100-130 100-120 martensitic S.S. 12 420 1.4021 200 100-150 100-130 100-120 grey cast iron 16 class 40 0.6025 (GG25) 250 200-250 220-300 220-300 180-230 K 0.7050 nodular cast iron 17 class 65-45-12 200 160-220 180-250 180-250 150-200 (GGG50) * ISCAR material group in accordance with VDI 3323 standard ** Quenched and tempered • First choice for grades Spare Parts Designation H690 FWN D050-04-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 H690 FWN D050-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 H690 FWN D063-05-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 H690 FWN D063-06-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M12X30 DIN912 H690 FWN D063-07-22-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 H690 FWN D080-07-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH H690 FWN D080-09-27-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH H690 FWN D100-08-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH H690 FWN D100-11-32-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH H690 FWN D125-10-40-R07 SR M4X0.7IP15 BLD IP15/S7 SW6-T-SH 230 ISCAR
