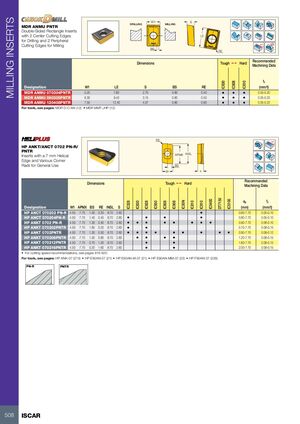

MILLING INSERTS W1 S DRILLING MILLING MDR ANMU PNTR Double-Sided Rectangle Inserts with 2 Center Cutting Edges LE for Drilling and 2 Peripheral Cutting Edges for Milling Rd° BS RE Recommended Dimensions Tough 1 Hard Machining Data fz IC830 IC808 IC810 Designation W1 LE S BS RE (mm/t) MDR ANMU 070304PNTR 5.20 7.80 2.70 0.80 0.40 • • • 0.05-0.20 MDR ANMU 090305PNTR 6.30 9.40 3.15 0.80 0.50 • • • 0.05-0.23 MDR ANMU 120408PNTR 7.50 12.40 4.07 0.80 0.80 • • • 0.05-0.23 For tools, see pages: MDR D-C-AN (12) • MDR MMT-JHP (12) RE Rd° HP ANKT/ANCT 0702 PN-R/ PNTR Inserts with a 7 mm Helical APMX lNSL Edge and Various Corner Radii for General Use BS W1 S Recommended Dimensions Tough 1 Hard Machining Data DT7150 ap fz IC5400 IC5100 IC30N IC328 IC830 IC928 IC950 IC808 IC908 IC810 IC910 Designation W1 APMX BS RE INSL S (mm) (mm/t) HP ANCT 070202 PN-R 4.50 7.70 1.50 0.20 8.70 2.60 • 0.60-7.70 0.05-0.10 HP ANCT 070204PN-R 4.50 7.70 1.40 0.40 8.70 2.60 • • • • 0.80-7.70 0.05-0.10 HP ANKT 0702 PN-R 4.50 7.70 1.30 0.50 8.70 2.60 • • • • • • • • 0.90-7.70 0.06-0.10 HP ANKT 070202PNTR 4.50 7.70 1.60 0.20 8.70 2.60 • • 0.70-7.70 0.08-0.15 HP ANKT 0702PNTR 4.50 7.70 1.30 0.50 8.70 2.60 • • • • • • • • • 0.90-7.70 0.08-0.12 HP ANKT 070208PNTR 4.50 7.70 1.00 0.80 8.70 2.60 • • • • 1.20-7.70 0.08-0.15 HP ANKT 070212PNTR 4.50 7.70 0.70 1.20 8.70 2.60 • • 1.60-7.70 0.08-0.15 HP ANKT 070216PNTR 4.50 7.70 0.20 1.60 8.70 2.60 • • 2.00-7.70 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HP ANK-07 (274) • HP E90AN-07 (21) • HP E90AN-M-07 (21) • HP E90AN-MM-07 (22) • HP F90AN-07 (229) PN-R PNTR 508 ISCAR
