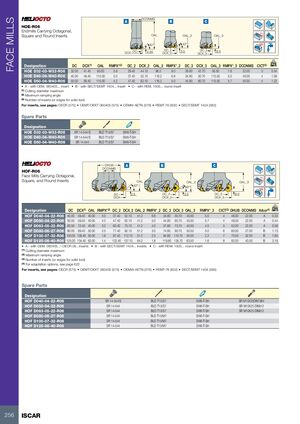

DCONMS FACE MILLS A B C HOE-R06 Endmills Carrying Octagonal, Rd° Square and Round Inserts OAL OAL_2 OAL_3 42° 42° DC DC_2 5.5 DC_3 8.0 DCX 2.50 DCX_2 DCX_3 kg Designation DC DCX(1) OAL RMPX°(2) DC_2 DCX_2 OAL_2 RMPX°_2 DC_3 DCX_3 OAL_3 RMPX°_3 DCONMS CICT(3) HOE D32-03-W32-R06 32.00 41.40 95.00 5.9 29.40 44.10 96.2 9.0 26.80 42.70 95.50 7.6 32.00 3 0.54 HOE D40-04-W40-R06 40.00 49.40 115.00 5.0 37.40 52.10 116.2 6.8 34.80 50.70 115.50 5.0 40.00 4 1.09 HOE D50-04-W40-R06 50.00 59.40 115.00 4.2 47.40 62.10 116.2 5.0 44.80 60.70 115.50 5.7 40.00 4 1.23 • A - with OEM. 060405... insert • B - with SECT/SEMT 1404... insert • C - with REM. 1505... round insert (1) Cutting diameter maximum (2) Maximum ramping angle (3) Number of inserts (or edges for solid tool) For inserts, see pages: OECR (575) • OEMT/OEKT 060405 (575) • OEMW-AETN (576) • REMT-76 (602) • SECT/SEMT 1404 (583) Spare Parts Designation HOE D32-03-W32-R06 SR 14-544/S BLD T15/S7 SW6-T-SH HOE D40-04-W40-R06 SR 14-544/S BLD T15/S7 SW6-T-SH HOE D50-04-W40-R06 SR 14-544 BLD T15/S7 SW6-T-SH DHUB A B C DCONMS HOF-R06 Face Mills Carrying Octagonal, Rd° Square, and Round Inserts OAL OAL_2 OAL_3 42° 42° DC 2.5 DC_2 5.5 DC_3 8.0 DCX DCX_2 DCX_3 kg Designation DC DCX(1) OAL RMPX°(2) DC_2 DCX_2 OAL_2 RMPX°_2 DC_3 DCX_3 OAL_3 RMPX°_3 CICT(3) DHUB DCONMS Arbor(4) HOF D040-04-22-R06 40.00 49.40 40.00 5.0 37.40 52.10 41.2 6.8 34.80 50.70 40.50 5.0 4 48.00 22.00 A 0.33 HOF D050-04-22-R06 50.00 59.40 40.00 4.2 47.40 62.10 41.2 5.0 44.80 60.70 40.50 5.7 4 48.00 22.00 A 0.44 HOF D063-05-22-R06 63.00 72.40 40.00 3.2 60.40 75.10 41.2 4.0 57.80 73.70 40.50 4.0 5 52.00 22.00 A 0.58 HOF D080-06-27-R06 80.00 89.40 50.00 2.5 77.40 92.10 51.2 3.0 74.80 90.70 50.50 3.0 6 60.00 27.00 B 1.13 HOF D100-07-32-R06 100.00 109.40 50.00 1.9 97.40 112.10 51.2 2.3 94.80 110.70 50.50 2.2 7 70.00 32.00 B 1.65 HOF D125-08-40-R06 125.00 134.40 63.00 1.4 122.40 137.10 64.2 1.8 119.80 135.70 63.50 1.6 8 82.00 40.00 B 3.19 • A - with OEM. 060405...\ OECR 06.. inserts • B - with SECT/SEMT 1404... inserts • C - with REM. 1505... round insert (1) Cutting diameter maximum (2) Maximum ramping angle (3) Number of inserts (or edges for solid tool) (4) For adaptation options, see page 622 For inserts, see pages: OECR (575) • OEMT/OEKT 060405 (575) • OEMW-AETN (576) • REMT-76 (602) • SECT/SEMT 1404 (583) Spare Parts Designation HOF D040-04-22-R06 SR 14-544/S BLD T15/S7 SW6-T-SH SR M10X25DIN7984 HOF D050-04-22-R06 SR 14-544 BLD T15/S7 SW6-T-SH SR M10X25 DIN912 HOF D063-05-22-R06 SR 14-544 BLD T15/S7 SW6-T-SH SR M10X25 DIN912 HOF D080-06-27-R06 SR 14-544 BLD T15/M7 SW6-T-SH HOF D100-07-32-R06 SR 14-544 BLD T15/M7 SW6-T-SH HOF D125-08-40-R06 SR 14-544 BLD T15/M7 SW6-T-SH 256 ISCAR
