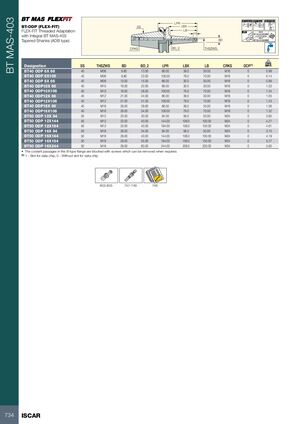

Фрезерные инструменты Iscar 2026 - страница 736

BT MAS-403 A 0.003 A AT3 Taper 58-60 HRc LPR BT-ODP (FLEX-FIT) SS LBX FLEX-FIT Threaded Adaptation LB √N5 G2.5 10 BT 40=20,000RPM with Integral BT MAS-403 or U<1.0 gmm G6.3 Tapered Shanks (ADB type) BD BT 50=12,000 RPM CRKS BD_2 THSZWS kg Designation SS THSZWS BD BD_2 LPR LBX LB CRKS DCP(1) BT40 ODP 6X 66 40 M06 9.80 13.00 66.00 39.0 30.00 M16 0 0.98 BT40 ODP 6X106 40 M06 9.80 23.00 106.00 79.0 70.00 M16 0 0.14 BT40 ODP 8X 66 40 M08 13.00 15.00 66.00 30.0 30.00 M16 0 0.99 BT40 ODP10X 66 40 M10 18.00 20.00 66.00 30.0 30.00 M16 0 1.03 BT40 ODP10X106 40 M10 18.00 28.00 106.00 79.0 70.00 M16 0 1.24 BT40 ODP12X 66 40 M12 21.00 24.00 66.00 39.0 30.00 M16 0 1.05 BT40 ODP12X106 40 M12 21.00 31.00 106.00 79.0 70.00 M16 0 1.23 BT40 ODP16X 66 40 M16 29.00 28.60 66.00 39.0 35.00 M16 0 1.06 BT40 ODP16X106 40 M16 29.00 34.00 106.00 79.0 70.00 M16 0 1.32 BT50 ODP 12X 94 50 M12 23.00 30.00 94.00 56.0 50.00 M24 0 3.85 BT50 ODP 12X144 50 M12 23.00 40.00 144.00 106.0 100.00 M24 0 4.27 BT50 ODP 12X194 50 M12 23.00 40.00 194.00 156.0 150.00 M24 0 4.61 BT50 ODP 16X 94 50 M16 29.00 34.00 94.00 56.0 50.00 M24 0 3.75 BT50 ODP 16X144 50 M16 29.00 40.00 144.00 106.0 100.00 M24 0 4.19 BT50 ODP 16X194 50 M16 29.00 55.00 194.00 156.0 150.00 M24 0 5.27 BT50 ODP 16X244 50 M16 29.00 60.00 244.00 206.0 200.00 M24 0 5.60 • The coolant passages in the B-type flange are blocked with screws which can be removed when required. (1) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 747-749 746 734 ISCAR
