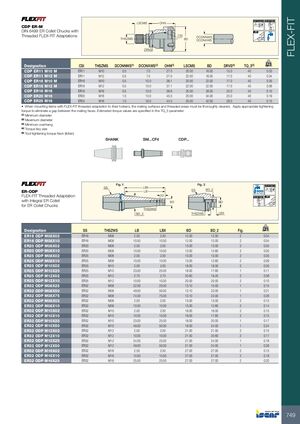

Фрезерные инструменты Iscar 2026 - страница 751

FLEX-FIT A 0.003 A 58-60 HRc LSCMS OHN CDP ER-M DIN 6499 ER Collet Chucks with √N5 Threaded FLEX-FIT Adaptations CSI DCONNWS THSZMS BD DCONXWS DRVS kg Designation CSI THSZMS DCONNWS(1) DCONXWS(2) OHN(3) LSCMS BD DRVS(4) TQ_3(5) CDP ER11 M10 M ER11 M10 0.5 7.0 27.0 20.00 16.00 15.0 40 0.03 CDP ER11 M12 M ER11 M12 0.5 7.0 27.0 22.00 16.00 17.0 40 0.04 CDP ER16 M10 M ER16 M10 0.5 10.0 38.1 20.00 22.00 17.0 40 0.05 CDP ER16 M12 M ER16 M12 0.5 10.0 37.1 22.00 22.00 17.0 40 0.06 CDP ER16 M16 ER16 M16 0.5 10.0 36.6 25.00 28.00 25.0 40 0.10 CDP ER20 M16 ER20 M16 1.0 13.0 45.5 25.00 34.00 25.0 40 0.19 CDP ER25 M16 ER25 M16 1.0 16.0 44.5 25.00 42.00 28.0 40 0.15 • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Minimum diameter (2) Maximum diameter (3) Minimum overhang (4) Torque key size (5) Tool tightening torque Nxm (lbfxin) SHANK SM...CF4 CDP... Fig. 1 Fig. 2 A 0.003 A SS LBX SS BD_2 ER-ODP LB Bar Max FLEX-FIT Threaded Adaptation 10 58-60 HRc √N5 with Integral ER Collet BD BD for ER Collet Chucks THSZWS BD_2 THSZWS LBX kg Designation SS THSZWS LB LBX BD BD_2 Fig. ER16 ODP M08X02 ER16 M08 2.50 2.50 12.00 12.00 2 0.04 ER16 ODP M08X10 ER16 M08 10.50 10.50 12.00 12.00 2 0.04 ER20 ODP M08X02 ER20 M08 2.00 2.00 13.00 13.00 2 0.05 ER20 ODP M08X10 ER20 M08 10.00 10.00 13.00 12.60 2 0.05 ER25 ODP M08X02 ER25 M08 2.00 2.00 13.00 13.00 2 0.05 ER25 ODP M08X10 ER25 M08 10.00 10.00 13.00 12.60 2 0.09 ER25 ODP M10X02 ER25 M10 2.00 2.00 18.00 18.00 2 0.05 ER25 ODP M10X25 ER25 M10 23.00 25.00 18.00 17.60 1 0.11 ER25 ODP M12X02 ER25 M12 2.70 2.70 20.60 19.20 2 0.08 ER25 ODP M12X10 ER25 M12 10.00 10.00 20.00 20.00 2 0.10 ER32 ODP M08X25 ER32 M08 22.00 25.00 13.10 15.00 1 0.15 ER32 ODP M08X50 ER32 M08 49.00 50.00 13.10 23.00 1 0.21 ER32 ODP M08X75 ER32 M08 74.00 75.00 13.10 23.00 1 0.26 ER32 ODP M08X02 ER32 M08 2.00 2.00 13.00 13.00 2 0.15 ER32 ODP M08X10 ER32 M08 10.00 10.00 13.00 12.60 2 0.14 ER32 ODP M10X02 ER32 M10 2.00 2.00 18.00 18.00 2 0.15 ER32 ODP M10X10 ER32 M10 10.00 10.00 18.00 17.60 2 0.15 ER32 ODP M10X25 ER32 M10 23.00 25.00 18.00 20.00 1 0.17 ER32 ODP M10X50 ER32 M10 49.00 50.00 18.00 24.00 1 0.24 ER32 ODP M12X02 ER32 M12 2.00 2.00 21.00 21.00 2 0.15 ER32 ODP M12X10 ER32 M12 10.00 10.00 21.00 20.60 2 0.17 ER32 ODP M12X25 ER32 M12 24.00 25.00 21.00 24.00 1 0.18 ER32 ODP M12X50 ER32 M12 49.00 50.00 21.00 24.00 1 0.26 ER32 ODP M16X02 ER32 M16 2.50 2.50 27.00 27.00 2 0.15 ER32 ODP M16X10 ER32 M16 10.50 10.50 27.00 27.00 2 0.18 ER32 ODP M16X25 ER32 M16 25.50 25.50 27.00 27.00 2 0.20 749
