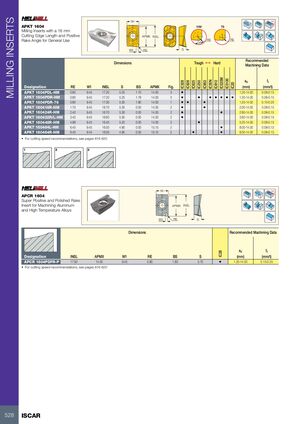

MILLING INSERTS W1 Rd° APKT 1604 HM 76 Milling Inserts with a 16 mm Cutting Edge Length and Positive APMX INSL Rake Angle for General Use RE RE 25˚ BS RE S Recommended Dimensions Tough 1 Hard Machining Data IC520M ap fz IC5100 IC30N IC328 IC928 IC635 IC250 IC950 IC910 IC20 Designation RE W1 INSL S BS APMX Fig. (mm) (mm/t) APKT 1604PDL-HM 0.80 9.45 17.20 5.25 1.70 14.00 3 • 1.20-14.00 0.08-0.15 APKT 1604PDR-HM 0.80 9.45 17.20 5.25 1.78 14.00 3 • • • • • • • 1.20-14.00 0.08-0.15 APKT 1604PDR-76 0.80 9.45 17.30 5.30 1.80 14.00 1 • • • 1.20-14.00 0.10-0.20 APKT 160416R-HM 1.70 9.45 16.70 5.30 0.00 14.00 2 • • 2.00-14.00 0.08-0.15 APKT 160424R-HM 2.40 9.45 16.70 5.30 0.00 14.00 2 • • 2.80-14.00 0.08-0.15 APKT 160432R/L-HM 3.40 9.45 16.60 5.30 0.00 14.00 2 • 3.60-14.00 0.08-0.15 APKT 160448R-HM 4.88 9.45 16.40 5.20 0.00 14.00 2 • 5.20-14.00 0.08-0.15 APKT 160464L-HM 6.40 9.45 16.00 4.90 0.00 15.15 2 • 8.00-14.00 0.08-0.15 APKT 160464R-HM 6.40 9.45 16.00 4.90 0.00 15.15 2 • • 8.00-14.00 0.08-0.15 • For cutting speed recommendations, see pages 616-620 1 2 3 W1 Rd° APCR 1604 Super Positive and Polished Rake Insert for Machining Aluminum APMX INSL and High Temperature Alloys BS RE S Dimensions Recommended Machining Data ap fz IC28 Designation INSL APMX W1 RE BS S (mm) (mm/t) APCR 1604PDFR-P 17.92 14.00 9.45 0.80 1.80 5.70 • 1.20-14.00 0.15-0.25 • For cutting speed recommendations, see pages 616-620 528 ISCAR
