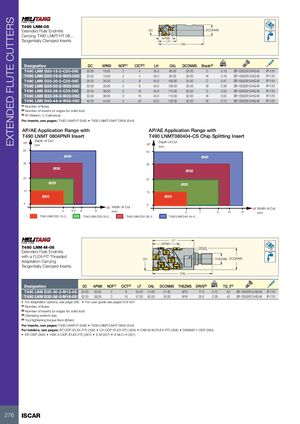

EXTENDED FLUTE CUTTERS T490 LNM-08 Extended Flute Endmills DC DCONMS Carrying T490 LNMT/HT 08... APMX Tangentially Clamped Inserts LH OAL kg Designation DC APMX NOF(1) CICT(2) LH OAL DCONMS Shank(3) T490 LNM D20-15-2-C20-08C 20.00 15.00 2 4 30.0 80.00 20.00 C 0.16 SR 10502813-HG-M IP-7/51 T490 LNM D20-15-2-W20-08C 20.00 15.00 2 4 30.0 80.00 20.00 W 0.16 SR 10502813-HG-M IP-7/51 T490 LNM D25-30-2-C25-08C 25.00 30.00 2 8 40.0 100.00 25.00 C 0.31 SR 10502813-HG-M IP-7/51 T490 LNM D25-30-2-W25-08C 25.00 30.00 2 8 40.0 100.00 25.00 W 0.30 SR 10502813-HG-M IP-7/51 T490 LNM D32-36-3-C32-08C 32.00 36.00 3 15 45.0 110.00 32.00 C 0.55 SR 10502813-HG-M IP-7/51 T490 LNM D32-36-3-W32-08C 32.00 36.00 3 15 45.0 110.00 32.00 W 0.55 SR 10502813-HG-M IP-7/51 T490 LNM D40-44-4-W32-08C 40.00 44.00 4 24 53.0 120.00 32.00 W 0.73 SR 10502813-HG-M IP-7/51 (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) W-Weldon, C-Cylindrical For inserts, see pages: T490 LNAR-P (548) • T490 LNMT/LNHT 0804 (544) AP/AE Application Range with AP/AE Application Range with T490 LNMT 0804PNR Insert T490 LNMT080404-CS Chip Splitting Insert Depth of Cut Depth of Cut AP AP mm mm 43 43 Ø40 Ø40 T4 35 35 Ø32 Ø32 T4 27 27 T4 Ø25 Ø25 15 T4 15 Ø20 Ø20 5 5 AE Width of Cut AE Width of Cut 5 6.5 8 9 mm 5 7 9 10 12 mm T490 LNM D20-15-2... T490 LNM D25-30-2... T490 LNM D32-36-3... T490 LNM D40-44-4... LF APMX T490 LNM-M-08 DRVS Extended Flute Endmills with a FLEX-FIT Threaded DC THSZMS DCONMS Adaptation Carrying Tangentially Clamped Inserts OAL kg Designation DC APMX NOF(1) CICT(2) LF OAL DCONMS THSZMS DRVS(3) TQ_3(4) T490 LNM D25-30-2-M12-08 25.00 30.00 2 8 52.00 74.00 21.00 M12 17.0 0.12 33 SR 10502813-HG-M IP-7/51 T490 LNM D32-36-3-M16-08 32.00 36.00 3 15 57.00 82.00 30.00 M16 25.0 0.26 40 SR 10502813-HG-M IP-7/51 • For adaptation options, see page 356 • For user guide see pages 616-621 (1) Number of flutes (2) Number of inserts (or edges for solid tool) (3) Clamping wrench size (4) Tool tightening torque Nxm (lbfxin) For inserts, see pages: T490 LNAR-P (548) • T490 LNMT/LNHT 0804 (544) For holders, see pages: BT-ODP (FLEX-FIT) (359) • C#-ODP (FLEX-FIT) (359) • CAB M-M (FLEX-FIT) (358) • DIN69871-ODP (360) • ER-ODP (360) • HSK A-ODP (FLEX-FIT) (361) • S M (357) • S M-C-H (357) 276 ISCAR
