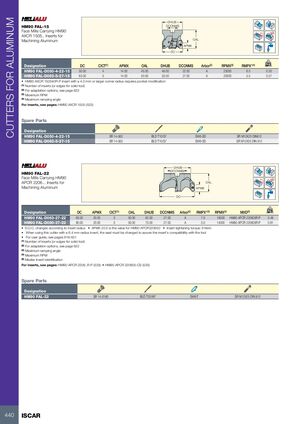

CUTTERS FOR ALUMINUM DHUB HM90 FAL-15 DCONMS Face Mills Carrying HM90 Rd° AXCR 1505.. Inserts for Machining Aluminum OAL APMX DC kg Designation DC CICT(1) APMX OAL DHUB DCONMS Arbor(2) RPMX(3) RMPX°(4) HM90 FAL-D050-4-22-15 50.00 4 14.00 45.00 49.00 22.00 A 23000 6.5 0.30 HM90 FAL-D063-5-27-15 63.00 5 14.00 50.00 53.00 27.00 A 20000 5.5 0.57 • HM90 AXCR 150540R-P insert with a 4.0 mm or larger corner radius requires pocket modification (1) Number of inserts (or edges for solid tool) (2) For adaptation options, see page 622 (3) Maximum RPM (4) Maximum ramping angle For inserts, see pages: HM90 AXCR 1505 (533) Spare Parts Designation HM90 FAL-D050-4-22-15 SR 14-562 BLD T10/S7 SW6-SD SR M10X25 DIN912 HM90 FAL-D063-5-27-15 SR 14-562 BLD T10/S7 SW6-SD SR M12X25 DIN 912 DHUB DCONMS HM90 FAL-22 Face Mills Carrying HM90 Rd° APCR 2206... Inserts for OAL Machining Aluminum APMX DC kg Designation DC APMX CICT(1) OAL DHUB DCONMS Arbor(2) RMPX°(3) RPMX(4) MIID(5) HM90 FAL-D063-27-22 63.00 20.00 3 50.00 62.00 27.00 A 7.0 16000 HM90 APCR 220605R-P 0.48 HM90 FAL-D080-27-22 80.00 20.00 3 50.00 70.00 27.00 A 5.0 14000 HM90 APCR 220605R-P 0.81 • D.O.C. changes according to insert radius • APMX 20.5 is the value for HM90 APCR220650 • Insert tightening torque: 6 Nxm • When using this cutter with a 6.4 mm radius insert, the seat must be changed to assure the insert’s compatibility with the tool • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) For adaptation options, see page 622 (3) Maximum ramping angle (4) Maximum RPM (5) Master insert identification For inserts, see pages: HM90 APCR 2206..R-P (535) • HM90 APCR 220605-CS (535) Spare Parts Designation HM90 FAL-22 SR 14-0180 BLD T20/M7 SW6-T SR M12X25 DIN 912 440 ISCAR
