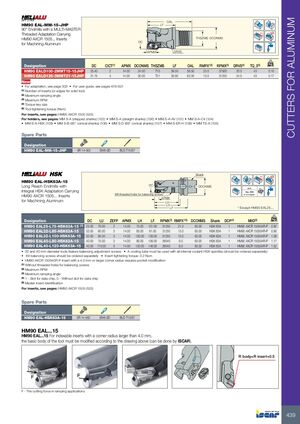

CUTTERS FOR ALUMINUM OAL HM90 EAL-MM-15-JHP LF 90° Endmills with a MULTI-MASTER Threaded Adaptation Carrying Rd° HM90 AXCR 1505... Inserts THSZMS DCONMS DC for Machining Aluminum APMX DRVS kg Designation DC CICT(1) APMX DCONMS THSZMS LF OAL RMPX°(2) RPMX(3) DRVS(4) TQ_3(5) HM90 EALD100-2MMT15-15JHP 25.40 2 14.00 24.00 T15 39.50 56.50 25.0 37500 20.0 43 0.10 HM90 EALD125-3MMT21-15JHP 31.75 3 14.00 30.00 T21 39.90 63.00 13.0 31250 24.0 43 0.17 New • For adaptation, see page 303 • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) Maximum ramping angle (3) Maximum RPM (4) Torque key size (5) Tool tightening torque (Nxm) For inserts, see pages: HM90 AXCR 1505 (533) For holders, see pages: MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER-H (108) • MM TS-A (105) Spare Parts Designation HM90 EAL-MM-15-JHP SR 14-562 SW6-SD BLD T10/S7 Shank Rd° HM90 EAL-HSK63A-15 Long Reach Endmills with DC DCONMS G2.5 Integral HSK Adaptation Carrying Max. RPM M6 threaded holes for balancing screws* HM90 AXCR 1505... Inserts or U<1.0 gmm APMX for Machining Aluminum LU LH LF * Except HM90 EAL25... kg Designation DC LU ZEFP APMX LH LF RPMX(2) RMPX°(3) DCONMS Shank DCP(4) MIID(5) HM90 EAL25-L75-HSK63A-15 (1) 25.00 70.00 2 14.00 75.00 101.00 31250 21.0 63.00 HSK 63A 1 HM90 AXCR 150504R-P 0.82 HM90 EAL32-L65-HSK63A-15 32.00 60.00 3 14.00 65.00 91.00 31250 13.0 63.00 HSK 63A 1 HM90 AXCR 150504R-P 0.90 HM90 EAL32-L100-HSK63A-15 32.00 95.00 3 14.00 100.00 126.00 31250 13.0 63.00 HSK 63A 1 HM90 AXCR 150504R-P 1.08 HM90 EAL40-L80-HSK63A-15 40.00 75.00 3 14.00 80.00 106.00 26040 9.0 63.00 HSK 63A 1 HM90 AXCR 150504R-P 1.17 HM90 EAL40-L120-HSK63A-15 40.00 115.00 3 14.00 120.00 146.00 26040 9.0 63.00 HSK 63A 1 HM90 AXCR 150504R-P 1.52 • 32 and 40 mm diameter tools feature balancing adjustment screws • A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately) • Kit balancing screws should be ordered separately • Insert tightening torque: 3.2 Nxm • HM90 AXCR 150540R-P insert with a 4.0 mm or larger corner radius requires pocket modification (1) Without threaded holes for balancing screws (2) Maximum RPM (3) Maximum ramping angle (4) 1 - Slot for data chip, 0 - Without slot for data chip (5) Master insert identification For inserts, see pages: HM90 AXCR 1505 (533) Spare Parts Designation HM90 EAL-HSK63A-15 SR 14-562 SW6-SD BLD T10/S7 HM90 EAL...15 HM90 EAL...15 For indexable inserts with a corner radius larger than 4.0 mm, the basic body of the tool must be modified according to the drawing above (can be done by ISCAR). R body=R insert+0.5 F - The cutting force in ramping applications 439
