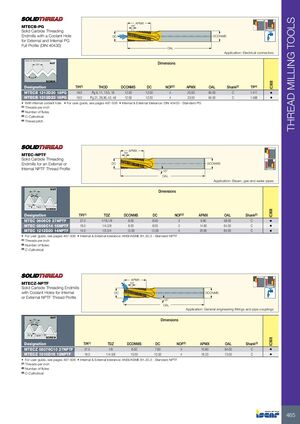

Фрезерные инструменты Iscar 2026 - страница 467

THREAD MILLING TOOLS APMX MTECB-PG TP Solid Carbide Threading Endmills with a Coolant Hole DC DCONMS for External and Internal PG Full Profile (DIN 40430) OAL Application: Electrical connectors Used for electrical connectors TP NUT Dimensions 80˚ SCREW IC908 Designation TPI(1) THOD DCONMS DC NOF(2) APMX OAL Shank(3) TP(4) MTECB 1212D20 18PG 18.0 Pg 9, 11, 13.5, 16 12.00 12.00 4 20.50 84.00 C 1.411 • MTECB 1212D23 16PG 16.0 Pg 21, 29,36, 42, 48 12.00 12.00 4 23.00 84.00 C 1.588 • • With internal coolant hole • For user guide, see pages 497-506 • Internal & External tolerance: DIN 40430 - Standard PG (1) Threads per inch (2) Number of flutes (3) C-Cylindrical (4) Thread pitch APMX TP MTEC-NPTF Solid Carbide Threading Endmills for an External or DC DCONMS Internal NPTF Thread Profile 15° OAL Application: Steam, gas and water pipes NUT TP Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 27NPTF 27.0 1/16,1/8 6.00 6.00 3 9.90 58.00 C • MTEC 0808C14 18NPTF 18.0 1/4,3/8 8.00 8.00 3 14.80 64.00 C • MTEC 1212D20 14NPTF 14.0 1/2,3/4 12.00 12.00 4 20.90 84.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ANSI/ASME B1.20.3 - Standard NPTF (1) Threads per inch (2) Number of flutes (3) C-Cylindrical APMX MTECZ-NPTF TP Solid Carbide Threading Endmills with Coolant Holes for Internal DC DCONMS or External NPTF Thread Profile 15° OAL Application: General engineering fittings and pipe couplings NUT TP Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTECZ 08076C10 27NPTF 27.0 1/8 8.00 7.60 3 10.80 64.00 C • MTECZ 1010D16 18NPTF 18.0 1/4-3/8 10.00 10.00 4 16.20 73.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ANSI/ASME B1.20.3 - Standard NPTF (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 465
