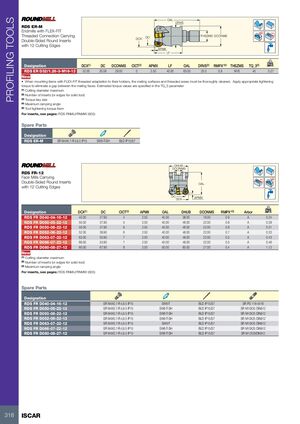

Фрезерные инструменты Iscar 2026 - страница 320

PROFILING TOOLS OAL DRVS RDS ER-M Endmills with FLEX-FIT Rd° Threaded Connection Carrying DC THSZMS DCONMS DCX Double-Sided Round Inserts with 12 Cutting Edges APMX LF kg Designation DCX(1) DC DCONMS CICT(2) APMX LF OAL DRVS(3) RMPX°(4) THSZMS TQ_3(5) RDS ER D32/1.26-3-M16-12 32.00 20.06 29.00 3 2.50 40.00 65.00 25.0 0.9 M16 40 0.27 New • When mounting items with FLEX-FIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Torque key size (4) Maximum ramping angle (5) Tool tightening torque Nxm For inserts, see pages: RDS RNMU/RNMW (605) Spare Parts Designation RDS ER-M SR M4X0.7-R-L9.5 IP15 SW6-T-SH BLD IP15/S7 DHUB DCONMS RDS FR-12 Face Mills Carrying Rd° Double-Sided Round Inserts OAL with 12 Cutting Edges DC APMX DCX kg Designation DCX(1) DC CICT(2) APMX OAL DHUB DCONMS RMPX°(3) Arbor RDS FR D040-04-16-12 40.00 27.90 4 2.50 45.00 38.00 16.00 0.9 A 0.24 RDS FR D050-05-22-12 50.00 37.90 5 2.50 40.00 48.00 22.00 0.8 A 0.39 RDS FR D050-06-22-12 50.00 37.90 6 2.50 40.00 48.00 22.00 0.8 A 0.31 RDS FR D052-06-22-12 52.00 39.90 6 2.50 40.00 48.00 22.00 0.7 A 0.33 RDS FR D063-07-22-12 63.00 50.90 7 2.50 40.00 48.00 22.00 0.5 A 0.43 RDS FR D066-07-22-12 66.00 53.90 7 2.50 40.00 48.00 22.00 0.5 A 0.46 RDS FR D080-08-27-12 80.00 67.90 8 2.50 50.00 60.00 27.00 0.4 A 1.12 New (1) Cutting diameter maximum (2) Number of inserts (or edges for solid tool) (3) Maximum ramping angle For inserts, see pages: RDS RNMU/RNMW (605) Spare Parts Designation RDS FR D040-04-16-12 SR M4X0.7-R-L9.5 IP15 SW6-T BLD IP15/S7 SR PS 118-0416 RDS FR D050-05-22-12 SR M4X0.7-R-L9.5 IP15 SW6-T-SH BLD IP15/S7 SR M10X25 DIN912 RDS FR D050-06-22-12 SR M4X0.7-R-L9.5 IP15 SW6-T-SH BLD IP15/S7 SR M10X25 DIN912 RDS FR D052-06-22-12 SR M4X0.7-R-L9.5 IP15 SW6-T-SH BLD IP15/S7 SR M10X25 DIN912 RDS FR D063-07-22-12 SR M4X0.7-R-L9.5 IP15 SW6-T BLD IP15/S7 SR M10X25 DIN912 RDS FR D066-07-22-12 SR M4X0.7-R-L9.5 IP15 SW6-T-SH BLD IP15/S7 SR M10X25 DIN912 RDS FR D080-08-27-12 SR M4X0.7-R-L9.5 IP15 SW6-T-SH BLD IP15/S7 SR M12X35DIN912 318 ISCAR
