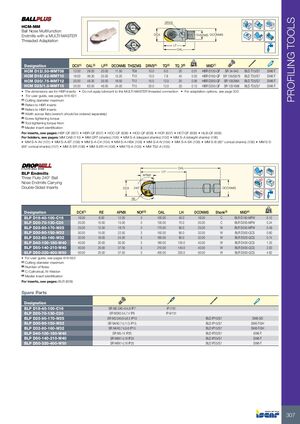

PROFILING TOOLS DRVS HCM-MM Ball Nose Multifunction Endmills with a MULTI-MASTER DCX THSZMS DCONMS Threaded Adaptation LF OAL kg Designation DCX(1) OAL(2) LF(3) DCONMS THSZMS DRVS(4) TQ(5) TQ_3(6) MIID(7) HCM D12/.50-MMT08 12.00 28.00 20.00 11.50 T08 10.0 6.0 20 0.01 HBR D120-QF SR 34-540 BLD T15/S7 SW6-T HCM D16/.62-MMT10 16.00 36.30 25.00 15.20 T10 13.0 7.8 40 0.03 HBR D160-QF SR 10503579 BLD T20/S7 SW6-T HCM D20/.75-MMT12 20.00 48.30 35.00 18.50 T12 15.0 12.0 20 0.06 HBR D200-QF SR 1052964 BLD T25/S7 SW6-T HCM D25/1.0-MMT15 25.00 63.00 46.00 24.00 T15 20.0 12.0 33 0.13 HBR D250-QF SR 1051666 BLD T25/S7 SW6-T • The dimensions are for HBR inserts • Do not apply lubricant to the MULTI-MASTER threaded connection • For adaptation options, see page 303 • For user guide, see pages 616-621 (1) Cutting diameter maximum (2) Refers to HBR inserts (3) Refers to HBR inserts (4) Width across flats (wrench should be ordered separately) (5) Screw tightening torque (6) Tool tightening torque Nxm (7) Master insert identification For inserts, see pages: HBF-QF (607) • HBR-QF (607) • HCC-QF (608) • HCD-QF (608) • HCR (607) • HCT-QF (609) • HLB-QF (609) For holders, see pages: MM CAB (110) • MM GRT (shanks) (105) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) OAL LH BLP Endmills APMX Three Flute 240° Ball Nose Endmills Carrying Double-Sided Inserts DCX 240˚ DCONMS Rd° RE kg Designation DCX(1) RE APMX NOF(2) OAL LH DCONMS Shank(3) MIID(4) BLP D16-40-100-C16 16.00 8.00 12.00 3 100.00 40.0 16.00 C BLR D160-MFW 0.12 BLP D20-70-130-C20 20.00 10.00 15.00 3 130.00 70.0 20.00 C BLR D200-MFW 0.24 BLP D25-90-170-W25 25.00 12.50 18.75 3 170.00 90.0 25.00 W BLR D250-MFW 0.49 BLP D30-90-150-W32 30.00 15.00 22.50 3 150.00 90.0 32.00 W BLR D300-QCS 0.60 BLP D32-80-160-W32 32.00 16.00 24.00 3 160.00 80.0 32.00 W BLR D320-QCS 0.74 BLP D40-100-180-W40 40.00 20.00 30.00 3 180.00 100.0 40.00 W BLR D400-QCS 1.25 BLP D50-140-210-W40 50.00 25.00 37.50 3 210.00 140.0 40.00 W BLR D500-QCS 2.00 BLP D50-320-400-W50 50.00 25.00 37.50 3 400.00 320.0 50.00 W BLR D500-QCS 4.62 • For user guide, see pages 616-622 (1) Cutting diameter maximum (2) Number of flutes (3) C-Cylindrical, W-Weldon (4) Master insert identification For inserts, see pages: BLR (609) Spare Parts Designation BLP D16-40-100-C16 SR M2.5X0.45-L6 IP7 IP-7/51 BLP D20-70-130-C20 SR M3X0.5-L7.4 IP9 IP-9/151 BLP D25-90-170-W25 SR M3.5X0.6-L8.5 IP10 BLD IP10/S7 SW6-SD BLP D30-90-150-W32 SR M4X0.7-L11.5 IP15 BLD IP15/S7 SW6-T-SH BLP D32-80-160-W32 SR M4X0.7-L9.6 IP15 BLD IP15/S7 SW6-T-SH BLP D40-100-180-W40 SR M5-14 IP20 BLD IP20/S7 SW6-T BLP D50-140-210-W40 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T BLP D50-320-400-W50 SR M6X1-L18 IP25 BLD IP25/S7 SW6-T 307
