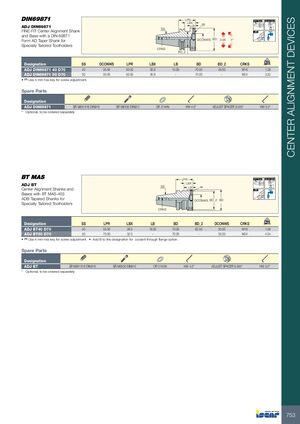

CENTER ALIGNMENT DEVICES LPR AT3 Taper 58-60 HRc LBX (1) ADJ DIN69871 LB SS FINE-FIT Center Alignment Shank √N5 and Base with a DIN 69871 Form AD Taper Shank for DCONWS BD 0.05 1° Specially Tailored Toolholders CRKS BD_2 kg Designation SS DCONWS LPR LBX LB BD BD_2 CRKS ADJ DIN69871 40 D70 40 35.00 50.00 30.9 15.00 70.00 46.00 M16 1.28 ADJ DIN69871 50 D70 50 35.00 50.00 30.9 - 70.00 - M24 3.32 • (1) Use 4 mm hex key for screw adjustment. Spare Parts Designation ADJ DIN69871 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0* * Optional, to be ordered separately LPR AT3 Taper 58-60 HRc LBX ADJ BT SS LB (1) Center Alignment Shanks and √N5 Bases with BT MAS-403 ADB Tapered Shanks for DCONWS BD_2 BD Specially Tailored Toolholders CRKS kg Designation SS LPR LBX LB BD BD_2 DCONWS CRKS ADJ BT40 D70 40 55.00 28.0 18.00 70.00 62.50 35.00 M16 1.56 ADJ BT50 D70 50 70.00 32.0 - 70.00 - 35.00 M24 4.34 • (1) Use 4 mm hex key for screw adjustment • Add B to the designation for coolant through flange option. Spare Parts Designation ADJ BT SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0* * Optional, to be ordered separately 753
