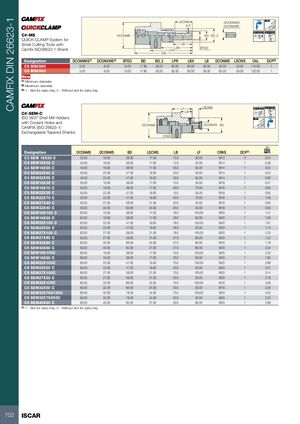

CAMFIX DIN 26623-1 √N5 LSCWS DCONNWS 4.5˚ DCONXWS A 0.003 A 50-52 HRc C#-MS DCONMS BD BD_2 QUICK-CLAMP System for Small Cutting Tools with LB LBX BTED Camfix ISO26623-1 Shank LPR OAL Designation DCONNWS(1) DCONXWS(2) BTED BD BD_2 LPR LBX LB DCONMS LSCWS OAL DCP(3) C5 MS6X60 3.00 6.00 15.00 17.80 26.20 80.00 60.00 36.00 50.00 33.00 110.00 1 C6 MS6X60 3.00 6.00 15.00 17.80 26.20 82.00 60.00 36.00 63.00 33.00 120.00 1 New (1) Minimum diameter (2) Maximum diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip LF LSCWS A 0.005 A 58-60 HRc LB C#-SEM-C ISO 3937 Shell Mill Holders √N5 with Coolant Holes and DCONMS DCONWS BD CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks CRKS kg Designation DCONMS DCONWS BD LSCWS LB LF CRKS DCP(1) C3 SEM 16X30 C 32.00 16.00 38.00 17.00 13.0 30.00 M12 0 0.24 C4 SEM16X32 C 40.00 16.00 38.00 17.00 12.0 32.00 M14 1 0.36 C4 SEM16X55 C 40.00 16.00 38.00 17.00 35.0 55.00 M14 1 0.54 C4 SEM22X40 C 40.00 22.00 47.00 19.00 20.0 40.00 M14 1 0.52 C4 SEM22X55 C 40.00 22.00 47.00 19.00 33.0 55.00 M14 1 0.80 C5 SEM16X35 C 50.00 16.00 38.00 17.00 15.0 35.00 M16 1 0.57 C5 SEM16X70 C 50.00 16.00 38.00 17.00 50.0 70.00 M16 1 0.85 C5 SEM22X35 C 50.00 22.00 47.00 19.00 15.0 35.00 M16 1 0.65 C5 SEM22X70 C 50.00 22.00 47.00 19.00 50.0 70.00 M16 1 1.09 C5 SEM27X40 C 50.00 27.00 58.00 21.00 20.0 40.00 M16 1 0.85 C5 SEM32X40 C 50.00 32.00 63.00 24.00 20.0 40.00 M16 1 0.93 C6 SEM16X100 C 63.00 16.00 38.00 17.00 78.0 100.00 M20 1 1.41 C6 SEM16X50 C 63.00 16.00 38.00 17.00 28.0 50.00 M20 1 1.00 C6 SEM22X100 C 63.00 22.00 47.00 19.00 78.0 100.00 M20 1 1.81 C6 SEM22X50 C 63.00 22.00 47.00 19.00 28.0 50.00 M20 1 1.15 C6 SEM27X100 C 63.00 27.00 58.00 21.00 78.0 100.00 M20 1 2.33 C6 SEM27X60 C 63.00 27.00 58.00 21.00 37.0 60.00 M20 1 1.52 C6 SEM32X60 C 63.00 32.00 66.00 24.00 37.0 60.00 M16 1 1.79 C6 SEM40X60 C 63.00 40.00 82.00 27.00 37.0 60.00 M20 1 2.34 C8 SEM16X100C 80.00 16.00 38.00 17.00 70.0 100.00 M20 1 2.32 C8 SEM16X50 C 80.00 16.00 38.00 17.00 20.0 50.00 M20 1 1.90 C8 SEM22X100C 80.00 22.00 47.00 19.00 70.0 100.00 M20 1 2.88 C8 SEM22X50 C 80.00 22.00 47.00 19.00 20.0 50.00 M20 1 2.01 C8 SEM27X100C 80.00 27.00 58.00 21.00 70.0 100.00 M20 1 3.14 C8 SEM27X50 C 80.00 27.00 58.00 21.00 20.0 50.00 M20 1 2.18 C8 SEM32X100C 80.00 32.00 66.00 24.00 70.0 100.00 M16 1 3.56 C8 SEM32X50 C 80.00 32.00 66.00 24.00 20.0 50.00 M16 1 2.28 C8 SEM32X78X100C 80.00 32.00 78.00 24.00 70.0 100.00 M20 1 4.50 C8 SEM32X78X50C 80.00 32.00 78.00 24.00 20.0 50.00 M20 1 2.20 C8 SEM40X60 C 80.00 40.00 82.00 27.00 30.0 60.00 M20 1 2.99 (1) 1 - Slot for data chip, 0 - Without slot for data chip 702 ISCAR
