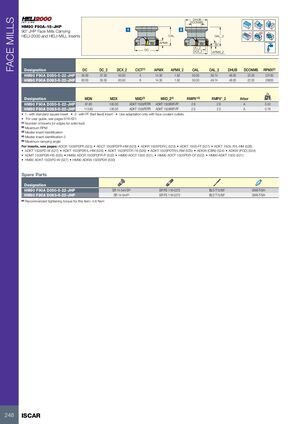

FACE MILLS DHUB DCONMS HM90 F90A-15-JHP 90° JHP Face Mills Carrying 1 2 Rd° HELI-2000 and HELI-MILL Inserts OAL OAL_2 APMX 18° DC_2 DC DCX_2 APMX_2 Designation DC DC_2 DCX_2 CICT(1) APMX APMX_2 OAL OAL_2 DHUB DCONMS RPMX(2) HM90 F90A D050-5-22-JHP 50.00 37.30 50.50 5 14.30 1.50 50.00 39.74 48.00 22.00 23100 HM90 F90A D063-6-22-JHP 63.00 50.30 63.50 6 14.30 1.50 50.00 49.74 48.00 22.00 20600 kg Designation MDN MDX MIID(3) MIID_2(4) RMPX°(5) RMPX°_2 Arbor HM90 F90A D050-5-22-JHP 87.80 100.00 ADKT 1505PDTR ADKT 1505R8T-FF 2.6 2.6 A 0.50 HM90 F90A D063-6-22-JHP 113.80 126.00 ADKT 1505PDTR ADKT 1505R8T-FF 2.0 2.0 A 0.76 • 1- with standard square insert • 2- with FF (fast feed) insert • Use adaptation only with face coolant outlets • For user guide, see pages 616-621 (1) Number of inserts (or edges for solid tool) (2) Maximum RPM (3) Master insert identification (4) Master insert identification 2 (5) Maximum ramping angle For inserts, see pages: ADCR 1505PDFR (523) • ADCT 1505PDFR-HM (523) • ADKR 1505PDR/L (523) • ADKT 1505-FF (527) • ADKT 1505..R/L-HM (526) • ADKT 1505PD-W (527) • ADKT 1505PDR/L-HM (525) • ADKT 1505PDTR-76 (526) • ADKT 1505PDTR/L-RM (525) • ADKW (CBN) (524) • ADKW (PCD) (524) • ADMT 1505PDR-HS (525) • HM90 ADCR 1505PDFR-P (522) • HM90 ADCT 1505 (521) • HM90 ADCT 1505PDR-CF (522) • HM90 ADKT 1505 (521) • HM90 ADKT 1505PD-W (527) • HM90 ADKW 1505PDR (530) Spare Parts Designation HM90 F90A D050-5-22-JHP SR 14-544/S(a) SR PS 118-0273 BLD T15/M7 SW6-T-SH HM90 F90A D063-6-22-JHP SR 14-544(a) SR PS 118-0273 BLD T15/M7 SW6-T-SH (a) Recommended tightening torque for this item: 4.8 Nxm 248 ISCAR
