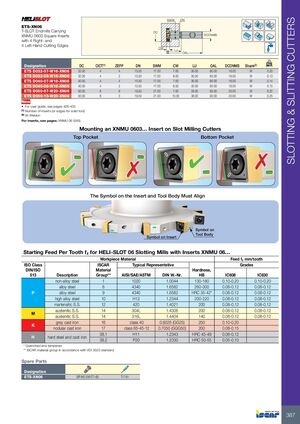

SLOTTING & SLITTING CUTTERS SWM DN ETS-XN06 T-SLOT Endmills Carrying DC XNMU 0603 Square Inserts DCONMS with 4 Right- and 4 Left-Hand Cutting Edges CW LU OAL kg Designation DC CICT(1) ZEFP DN SWM CW LU OAL DCONMS Shank(2) ETS D032-07-W16-XN06 32.00 4 4 15.50 17.00 7.00 30.00 80.00 16.00 W 0.20 ETS D032-08-W16-XN06 32.00 4 2 15.50 17.00 8.00 35.00 85.00 16.00 W 0.13 ETS D040-07-W16-XN06 40.00 4 4 15.50 17.00 7.00 30.00 80.00 16.00 W 0.14 ETS D040-08-W16-XN06 40.00 4 2 15.50 17.00 8.00 35.00 85.00 16.00 W 0.15 ETS D050-07-W20-XN06 50.00 6 6 19.50 21.00 7.00 33.00 85.00 20.00 W 0.22 ETS D050-10-W20-XN06 50.00 6 3 19.50 21.00 10.00 38.00 90.00 20.00 W 0.25 New • For user guide, see pages 426-432 (1) Number of inserts (or edges for solid tool) (2) W-Weldon For inserts, see pages: XNMU 06 (585) Mounting an XNMU 0603… Insert on Slot Milling Cutters Top Pocket Bottom Pocket 4 7 4 7 The Symbol on the Insert and Tool Body Must Align Symbol on Tool Body Symbol on Insert Starting Feed Per Tooth fz for HELI-SLOT 06 Slotting Mills with Inserts XNMU 06… Workpiece Material Feed fz mm/tooth ISO Class ISCAR Typical Representstive Grades DIN/ISO Material Hardness, 513 Description Group** AISI/SAE/ASTM DIN W.-Nr. HB IC808 IC830 non-alloy steel 1 1020 1.0044 130-180 0.10-0.20 0.10-0.20 alloy steel 8 4340 1.6582 260-300 0.08-0.12 0.08-0.12 P alloy steel 9 4340 1.6582 HRC 35-42* 0.08-0.12 0.08-0.12 high alloy steel 10 H13 1.2344 200-220 0.08-0.12 0.08-0.12 martensitic S.S. 12 420 1.4021 200 0.08-0.12 0.08-0.12 austenitic S.S. 14 304L 1.4306 200 0.08-0.12 0.08-0.12 M austenitic S.S. 14 316L 1.4404 140 0.08-0.12 0.08-0.12 grey cast iron 16 class 40 0.6025 (GG25) 250 0.10-0.20 K nodular cast iron 17 class 65-45-12 0.7050 (GGG50) 200 0.08-0.15 38.1 H11 1.2343 HRC 45-49 0.06-0.12 H hard steel and cast iron 38.2 P20 1.2330 HRC 50-55 0.05-0.10 * Quenched and tempered ** ISCAR material group in accordance with VDI 3323 standard Spare Parts Designation ETS-XN06 SR M2.5X6-T7-60 T-7/51 387
