Фрезерные инструменты Iscar 2026 - страница 336

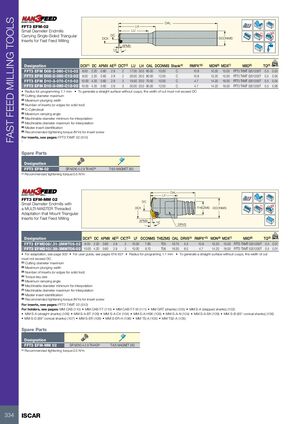

FAST FEED MILLING TOOLS OAL FFT3 EFM-02 LH Small Diameter Endmills LU Rd° Carrying Single-Sided Triangular DC DCX DCONMS Inserts for Fast Feed Milling APMX 14˚ kg Designation DCX(1) DC APMX AE(2) CICT(3) LU LH OAL DCONMS Shank(4) RMPX°(5) MDN(6) MDX(7) MIID(8) TQ(9) FFT3 EFM D08-2-060-C10-02 8.00 2.20 0.60 2.9 2 17.00 20.0 60.00 10.00 C 10.8 10.20 15.00 FFT3 TXMT 0201205T 0.5 0.03 FFT3 EFM D08-2-080-C12-02 8.00 2.20 0.60 2.9 2 26.00 30.0 80.00 12.00 C 10.8 10.20 15.00 FFT3 TXMT 0201205T 0.5 0.05 FFT3 EFM D10-3-070-C10-02 10.00 4.20 0.60 2.9 3 19.50 20.0 70.00 10.00 C 4.7 14.20 19.00 FFT3 TXMT 0201205T 0.5 0.04 FFT3 EFM D10-3-090-C12-02 10.00 4.20 0.60 2.9 3 30.00 33.0 90.00 12.00 C 4.7 14.20 19.00 FFT3 TXMT 0201205T 0.5 0.06 • Radius for programming 1.1 mm • To generate a straight surface without cusps, the width of cut must not exceed DC (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) C-Cylindrical (5) Maximum ramping angle (6) Machinable diameter minimum for interpolation (7) Machinable diameter maximum for interpolation (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFT3 TXMT 02 (510) ‘ Spare Parts Designation FFT3 EFM-02 SR M2X0.4-2.9 T6-HG(a) T-6/5 MAGNET 3X3 (a) Recommended tightening torque:0.5 N*m OAL LF FFT3 EFM-MM 02 DC Small Diameter Endmills with Rd° a MULTI-MASTER Threaded DCX THSZMS DCONMS Adaptation that Mount Triangular Inserts for Fast Feed Milling APMX 14˚ DRVS Designation DCX(1) DC APMX AE(2) CICT(3) LF DCONMS THSZMS OAL DRVS(4) RMPX°(5) MDN(6) MDX(7) MIID(8) TQ(9) kg FFT3 EFMD08/.31-2MMT05-02 8.00 2.20 0.60 2.9 2 10.00 7.60 T05 16.75 5.5 10.8 10.20 15.00 FFT3 TXMT 0201205T 0.5 0.01 FFT3 EFMD10/.39-3MMT06-02 10.00 4.20 0.60 2.9 3 10.00 9.70 T06 16.30 8.0 4.7 14.20 19.00 FFT3 TXMT 0201205T 0.5 0.01 • For adaptation, see page 303 • For user guide, see pages 616-621 • Radius for programing 1.1 mm • To generate a straight surface without cusps, the width of cut must not exceed DC (1) Cutting diameter maximum (2) Maximum plunging width (3) Number of inserts (or edges for solid tool) (4) Torque key size (5) Maximum ramping angle (6) Machinable diameter minimum for interpolation (7) Machinable diameter maximum for interpolation (8) Master insert identification (9) Recommended tightening torque (N*m) for insert screw For inserts, see pages: FFT3 TXMT 02 (510) For holders, see pages: MM CAB (110) • MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM GRT (shanks) (105) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation FFT3 EFM-MM 02 SR M2X0.4-2.9 T6-HG(a) T-6/5 MAGNET 3X3 (a) Recommended tightening torque:0.5 N*m 334 ISCAR
