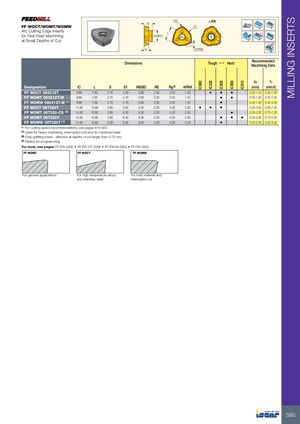

MILLING INSERTS RE ...CS S1 FF WOCT/WOMT/WOMW IC Arc Cutting Edge Inserts L Rd° for Fast Feed Machining INSBD at Small Depths of Cut S APMX Recommended Dimensions Tough 1 Hard Machining Data ap fz IC882 IC328 IC928 IC908 IC910 Designation IC L S S1 INSBD RE Rg(3) APMX (mm) (mm/t) FF WOCT 060212T 9.86 7.00 2.70 4.20 5.60 2.00 3.00 1.20 • • • 0.20-1.20 0.30-1.00 FF WOMT 060212T-M 9.86 7.00 2.70 4.20 5.60 2.00 3.00 1.20 • • 0.20-1.20 0.70-1.50 FF WOMW 060212T-M (1) 9.86 7.00 2.70 4.70 5.60 2.00 3.00 1.20 • 0.20-1.20 0.50-3.50 FF WOCT 09T320T 14.50 10.60 3.95 6.50 9.30 2.00 4.00 2.00 • • • 0.20-2.00 0.30-1.00 FF WOMT 09T320-CS (2) 14.50 10.60 3.95 6.50 9.30 2.00 4.20 2.00 • 0.20-2.00 0.70-1.20 FF WOMT 09T320T 14.50 10.60 3.95 6.50 9.30 2.00 4.00 2.00 • • • 0.20-2.00 0.70-2.00 FF WOMW 09T320T (1) 14.50 10.60 4.00 6.50 9.30 2.00 4.00 2.00 • 0.20-2.00 0.50-3.50 • For cutting speed recommendations, see pages 616-620 (1) Used for heavy machining, interrupted cuts and for hardened steel. (2) Chip splitting insert - effective at depths of cut larger than 0.75 mm. (3) Radius for programming For tools, see pages: FF EW (349) • FF EW-CF (349) • FF EW-M (350) • FF FW (350) FF WOMT FF WOCT FF WOMW For general applications For high temperature alloys For hard material and and stainless steel interrupted cut 595
