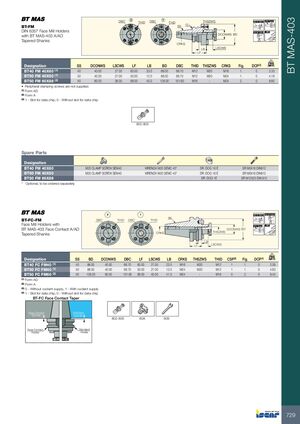

BT MAS-403 DBC 2 DBC 1 THSZWS 0.005 A AT3 Taper THID THID A G.L. BT-FM SS DIN 6357 Face Mill Holders 58-60 HRc √N5 DCONWS BD with BT MAS-403 A/AD Tapered Shanks CRKS LB LSCWS LF kg Designation SS DCONWS LSCWS LF LB BD DBC THID THSZWS CRKS Fig. DCP(3) BT40 FM 40X60 (1) 40 40.00 27.00 60.00 33.0 88.00 66.70 M12 M20 M16 1. 0 2.33 BT50 FM 40X50 (1) 50 40.00 27.00 50.00 12.0 88.00 66.70 M12 M20 M24 1. 0 4.19 BT50 FM 60X88 (2) 50 60.00 38.00 88.00 40.0 128.00 101.60 M16 - M24 2. 0 8.60 • Peripheral clamping screws are not supplied. (1) Form AD (2) Form A (3) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 Spare Parts Designation BT40 FM 40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR. DOG 16 E SR M5X16 DIN912 BT50 FM 40X50 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR. DOG 16 E SR M5X16 DIN912 BT50 FM 60X88 DR. DOG 1E SR M12X25 DIN 912 * Optional, to be ordered separately 2 1 A 0.005 A 58-60 HRc SS BT-FC-FM DBC THID DBC THID Face Mill Holders with AT3 Taper √N5 BT MAS-403 Face Contact A/AD DCONWS BD CRKS THSZWS Tapered Shanks LB LF LSCWS kg Designation SS BD DCONWS DBC LF LSCWS LB CRKS THSZWS THID CSP(3) Fig. DCP(4) BT40 FC FM40 (1) 40 88.00 40.00 66.70 60.00 27.00 23.0 M16 M20 M12 1 1. 0 2.39 BT50 FC FM40 (1) 50 88.00 40.00 66.70 50.00 27.00 13.5 M24 M20 M12 1 1. 0 4.63 BT50 FC FM60 (2) 50 128.00 60.00 101.60 88.00 40.00 41.5 M24 - M16 0 2. 0 9.45 (1) Form AD (2) Form A (3) 0 - Without coolant supply, 1 - With coolant supply (4) 1 - Slot for data chip, 0 - Without slot for data chip BT-FC Face Contact Taper Face Contact Standard Spindle Spindle 802-805 808 809 Face Contact Standard Holder Holder 729
