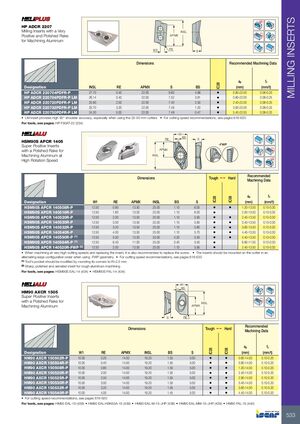

MILLING INSERTS HP ADCR 2207 Milling Inserts with a Very INSL Rd° Positive and Polished Rake APMX for Machining Aluminum BS RE S Dimensions Recommended Machining Data ap fz IC28 Designation INSL RE APMX S BS (mm) (mm/t) HP ADCR 220704PDFR-P 27.70 0.40 22.00 9.60 4.88 • 0.80-22.00 0.08-0.25 HP ADCR 220704PDFR-P LM 26.14 0.40 22.00 7.52 3.81 • 0.80-22.00 0.08-0.25 HP ADCR 220720PDFR-P LM 25.90 2.00 22.00 7.40 2.50 • 2.40-22.00 0.08-0.25 HP ADCR 220732PDFR-P LM 25.70 3.20 22.00 7.49 1.20 • 3.60-22.00 0.08-0.25 HP ADCR 220750PDFR-P LM 24.30 5.00 22.00 7.49 0.47 • 5.40-22.00 0.08-0.25 • LM insert provides high 90° shoulder accuracy, especially when using the 32-50 mm cutters • For cutting speed recommendations, see pages 616-620 For tools, see pages: HP F90AT-22 (254) W1 BS RE S HSM90S APCR 1405 -FWP Super Positive Inserts Rd° with a Polished Rake for APMX Machining Aluminum at lNSL High Rotation Speed Recommended Dimensions Tough 1 Hard Machining Data ap fz IC28 IC08 Designation W1 RE APMX INSL BS S (mm) (mm/t) HSM90S APCR 140508R-P 12.50 0.80 13.50 25.00 1.10 6.05 • • 1.20-13.50 0.10-0.30 HSM90S APCR 140516R-P 12.50 1.60 13.50 25.00 1.10 6.00 • 2.00-13.50 0.10-0.30 HSM90S APCR 140520R-P 12.50 2.00 13.50 25.00 1.10 5.95 • • 2.40-13.50 0.10-0.30 HSM90S APCR 140530R-P 12.50 3.00 13.50 25.00 1.10 5.85 • • 3.40-13.50 0.10-0.30 HSM90S APCR 140532R-P 12.50 3.20 13.50 25.00 1.10 5.80 • • 3.60-13.50 0.10-0.30 HSM90S APCR 140540R-P 12.50 4.00 13.50 25.00 1.10 5.70 • • 4.40-13.50 0.10-0.30 HSM90S APCR 140550R-P (1) 12.50 5.00 13.50 25.00 0.20 5.50 • • 5.40-13.50 0.10-0.30 HSM90S APCR 140564R-P (1) 12.50 6.40 11.00 25.00 0.40 5.50 • 6.80-11.00 0.10-0.30 HSM90S APCR 140520R-FWP (2) 12.50 2.00 13.50 25.00 1.10 5.95 • 2.40-13.50 0.10-0.30 • When machining at very high cutting speeds and replacing the insert, it is also recommended to replace the screw. • The inserts should be mounted on the cutter in an alternating edge configuration order when using -FWP geometry. • For cutting speed recommendations, see pages 616-620 (1) Tool’s pocket should be modified by rounding its corners to R=2.5 mm (2) Sharp, polished and serrated insert for rough aluminum machining For tools, see pages: HSM90S EAL-14 (434) • HSM90S FAL-14 (434) W1 BS HM90 AXCR 1505 Super Positive Inserts Rd° with a Polished Rake for lNSL Machining Aluminum APMX S RE Recommended Dimensions Tough 1 Hard Machining Data ap fz IC28 IC08 Designation W1 RE APMX INSL BS S (mm) (mm/t) HM90 AXCR 150502R-P 10.00 0.20 14.00 19.20 1.55 5.00 • • 0.60-14.00 0.10-0.20 HM90 AXCR 150504R-P 10.00 0.40 14.00 19.20 1.55 5.00 • • 0.80-14.00 0.10-0.20 HM90 AXCR 150508R-P 10.00 0.80 14.00 19.20 1.55 5.00 • • 1.20-14.00 0.10-0.20 HM90 AXCR 150520R-P 10.00 2.00 14.00 19.20 1.55 5.00 • • 2.40-14.00 0.10-0.20 HM90 AXCR 150525R-P 10.00 2.50 14.00 19.20 1.55 5.00 • • 2.90-14.00 0.10-0.20 HM90 AXCR 150530R-P 10.00 3.00 14.00 19.20 1.55 5.00 • • 3.40-14.00 0.10-0.20 HM90 AXCR 150532R-P 10.00 3.20 14.00 19.20 1.55 5.00 • • 3.60-14.00 0.10-0.20 HM90 AXCR 150540R-P 10.00 4.00 14.00 19.20 1.45 5.00 • • 4.40-14.00 0.10-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: HM90 EAL-15 (438) • HM90 EAL-HSK63A-15 (439) • HM90 EAL-M-15-JHP (438) • HM90 EAL-MM-15-JHP (439) • HM90 FAL-15 (440) 533
