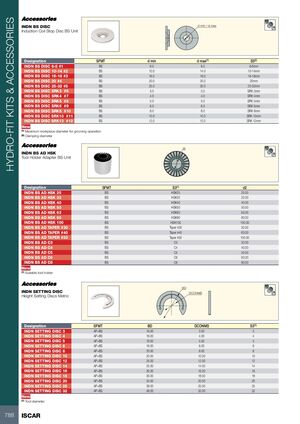

HYDRO-FIT KITS & ACCESSORIES INDN BS DISC d min / d max Induction Coil Stop Disc BS Unit Designation SFMT d min d max(1) S3(2) INDN BS DISC 6-8 #1 BS 6.0 8.0 6-8mm INDN BS DISC 10-14 #2 BS 10.0 14.0 10-14mm INDN BS DISC 16-18 #3 BS 16.0 18.0 16-18mm INDN BS DISC 20 #4 BS 20.0 20.0 20mm INDN BS DISC 25-32 #5 BS 25.0 32.0 25-32mm INDN BS DISC SRK3 #6 BS 3.0 3.0 SRK 3mm INDN BS DISC SRK4 #7 BS 4.0 4.0 SRK 4mm INDN BS DISC SRK5 #8 BS 5.0 5.0 SRK 5mm INDN BS DISC SRK6 #9 BS 6.0 6.0 SRK 6mm INDN BS DISC SRK8 #10 BS 8.0 8.0 SRK 8mm INDN BS DISC SRK10 #11 BS 10.0 10.0 SRK 10mm INDN BS DISC SRK12 #12 BS 12.0 12.0 SRK 12mm New (1) Maximum workpiece diameter for grooving operation (2) Clamping diameter d2 INDN BS AD HSK Tool Holder Adapter BS Unit Designation SFMT S3(1) d2 INDN BS AD HSK 25 BS HSK25 25.00 INDN BS AD HSK 32 BS HSK32 32.00 INDN BS AD HSK 40 BS HSK40 40.00 INDN BS AD HSK 50 BS HSK50 50.00 INDN BS AD HSK 63 BS HSK63 63.00 INDN BS AD HSK 80 BS HSK80 80.00 INDN BS AD HSK 100 BS HSK100 100.00 INDN BS AD TAPER #30 BS Taper #30 50.00 INDN BS AD TAPER #40 BS Taper #40 63.00 INDN BS AD TAPER #50 BS Taper #50 100.00 INDN BS AD C3 BS C3 32.00 INDN BS AD C4 BS C4 40.00 INDN BS AD C5 BS C5 50.00 INDN BS AD C6 BS C6 63.00 INDN BS AD C8 BS C8 80.00 New (1) Suitable tool holder BD INDN SETTING DISC DCONMS Height Setting Discs Metric Designation SFMT BD DCONMS S3(1) INDN SETTING DISC 3 AP+BS 16.00 3.00 3 INDN SETTING DISC 4 AP+BS 16.00 4.00 4 INDN SETTING DISC 5 AP+BS 16.00 5.00 5 INDN SETTING DISC 6 AP+BS 16.00 6.00 6 INDN SETTING DISC 8 AP+BS 20.00 8.00 8 INDN SETTING DISC 10 AP+BS 20.00 10.00 10 INDN SETTING DISC 12 AP+BS 25.00 12.00 12 INDN SETTING DISC 14 AP+BS 25.00 14.00 14 INDN SETTING DISC 16 AP+BS 30.00 16.00 16 INDN SETTING DISC 18 AP+BS 30.00 18.00 18 INDN SETTING DISC 20 AP+BS 34.00 20.00 20 INDN SETTING DISC 25 AP+BS 39.00 25.00 25 INDN SETTING DISC 32 AP+BS 48.00 32.00 32 New (1) Tool diameter 788 ISCAR
