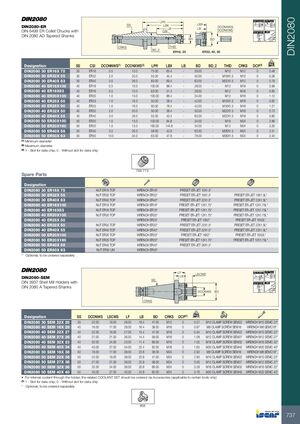

DIN2080 A 0.003 A AT3 Taper LPR SS LBX LBX DIN2080-ER LB LB DCONNWS DIN 6499 ER Collet Chucks with CSI DCONXWS 58-60 HRc √N5 DIN 2080 AD Tapered Shanks BD BD CRKS THID BD_2 ER16, 20 ER32, 40, 50 kg Designation SS CSI DCONNWS(1) DCONXWS(2) LPR LBX LB BD BD_2 THID CRKS DCP(3) DIN2080 30 ER16X 75 30 ER16 0.5 10.0 75.00 65.4 - 28.00 - M10 M12 0 0.48 DIN2080 30 ER32X 55 30 ER32 2.0 20.0 55.00 45.4 - 50.00 - M18X1.5 M12 0 0.36 DIN2080 30 ER40X 83 30 ER40 3.0 26.0 83.00 69.4 - 63.00 - M22X1.5 M12 0 0.79 DIN2080 40 ER16X100 40 ER16 0.5 10.0 100.00 88.4 - 28.00 - M12 M16 0 0.99 DIN2080 40 ER16X63 40 ER16 0.5 10.0 63.00 51.4 - 28.00 - M12 M16 0 0.85 DIN2080 40 ER20X100 40 ER20 1.0 13.0 100.00 88.4 - 34.00 - M12 M16 0 1.12 DIN2080 40 ER25X 50 40 ER25 1.0 16.0 50.00 38.4 - 42.00 - M16X1.5 M16 0 0.82 DIN2080 40 ER25X 90 40 ER25 1.0 16.0 90.00 78.4 - 42.00 - M16X1.5 M16 0 1.21 DIN2080 40 ER32X 50 40 ER32 2.0 20.0 50.00 38.4 - 50.00 - M22X1.5 M16 0 0.73 DIN2080 40 ER40X 55 40 ER40 3.0 26.0 55.00 43.4 - 63.00 - M22X1.5 M16 0 0.80 DIN2080 50 ER20X100 50 ER20 1.0 13.0 100.00 84.8 - 34.00 - M16 M24 0 2.89 DIN2080 50 ER20X160 50 ER20 1.0 13.0 160.00 144.8 - 34.00 - M12 M24 0 3.30 DIN2080 50 ER40X 58 50 ER40 3.0 26.0 58.00 42.8 - 63.00 - M28X1.5 M24 0 2.51 DIN2080 50 ER50X 63 50 ER50 10.0 34.0 63.00 47.8 - 78.00 - M36X1.5 M24 0 2.40 (1) Minimum diameter (2) Maximum diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip 766-773 Spare Parts Designation DIN2080 30 ER16X 75 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* DIN2080 30 ER32X 55 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 18X1.5* PRESET ER-JET 18X1.5L* DIN2080 30 ER40X 83 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L* DIN2080 40 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L* DIN2080 40 ER16X63 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L* DIN2080 40 ER20X100 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L* DIN2080 40 ER25X 50 WRENCH ER25* PRESET ER-JET 16X2* PRESET ER-JET 16X2L* DIN2080 40 ER32X 50 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L* DIN2080 40 ER40X 55 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L* DIN2080 50 ER20X100 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 16X2* PRESET ER-JET 16X2L* DIN2080 50 ER20X160 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L* DIN2080 50 ER40X 58 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5* DIN2080 50 ER50X 63 NUT ER50 UM WRENCH ER50* * Optional, to be ordered separately LF A 0.005 A AT3 Taper LSCWS LB • DIN2080-SEM SS DIN 3937 Shell Mill Holders with 58-60 HRc √N5 DIN 2080 A Tapered Shanks DCONWS BD CRKS kg Designation SS DCONWS LSCWS LF LB BD CRKS DCP(1) DIN2080 30 SEM 22X 28 30 22.00 19.00 28.00 18.4 47.00 M12 0 0.57 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DIN2080 40 SEM 16X 28 40 16.00 17.00 28.00 16.4 38.00 M16 0 0.87 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DIN2080 40 SEM 22X 27 40 22.00 19.00 27.00 15.4 47.00 M16 0 0.94 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DIN2080 40 SEM 27X 26 40 27.00 21.00 26.00 14.4 58.00 M16 0 1.08 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DIN2080 40 SEM 32X 23 40 32.00 24.00 23.00 11.4 66.00 M16 0 1.05 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DIN2080 40 SEM 40X 34 40 40.00 27.00 34.00 22.4 82.00 M16 0 1.65 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DIN2080 50 SEM 16X 38 50 16.00 17.00 38.00 22.8 38.00 M24 0 2.92 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DIN2080 50 SEM 22X 38 50 22.00 19.00 38.00 22.8 47.00 M24 0 2.90 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DIN2080 50 SEM 27X 38 50 27.00 21.00 38.00 22.8 58.00 M24 0 3.00 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DIN2080 50 SEM 32X 36 50 32.00 24.00 36.00 20.8 66.00 M24 0 3.28 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DIN2080 50 SEM 40X 40 50 40.00 27.00 40.00 24.8 82.00 M24 0 3.76 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* • For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) (1) 1 - Slot for data chip, 0 - Without slot for data chip * Optional, to be ordered separately 808 737
