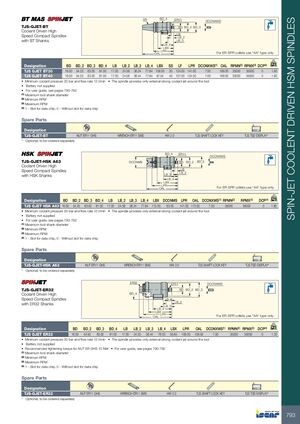

BD_4 SPIN-JET COOLENT DRIVEN HSM SPINDLES SS ER11 DCONXWS TJS-GJET-BT BD BD_2 BD_3 Coolant Driven High LB Speed Compact Spindles LB_2 with BT Shanks LB_3 LB_4 LBX LPR For ER-SPR collets use "AA" type only OAL kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX SS LF LPR DCONXWS(1) OAL RPMN(2) RPMX(3) DCP(4) TJS GJET BT30 16.00 54.25 63.00 81.00 17.00 24.58 36.24 77.84 109.00 30 124.00 141.00 7.00 189.00 35000 55000 0 1.60 TJS GJET BT40 16.00 54.25 63.00 81.00 17.00 24.58 36.44 77.84 97.04 40 107.00 124.00 7.00 189.00 35000 55000 0 1.80 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum tool shank diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS-GJET-BT NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY TJS TSD DISPLAY* * Optional, to be ordered separately BD_4 ER11 DCONXWS TJS-GJET-HSK A63 DCONMS BD BD_2 BD_3 Coolant Driven High Speed Compact Spindles LB LB_2 with HSK Shanks LB_3 LB_4 LBX LPR OAL For ER-SPR collets use "AA" type only kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX DCONMS LPR OAL DCONXWS(1) RPMN(2) RPMX(3) DCP(4) TJS GJET HSK A63 16.00 54.25 63.00 81.00 17.00 24.58 36.24 77.84 115.00 63.00 141.00 173.00 7.00 35000 55000 0 1.80 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • For user guide, see pages 790-792 (1) Maximum tool shank diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS-GJET-HSK A63 NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY TJS TSD DISPLAY* * Optional, to be ordered separately ER32 ER11 DCONXWS TJS-GJET-ER32 BD BD_2 BD_3 Coolant Driven High BD_4 Speed Compact Spindles LB LB_2 with ER32 Shanks LB_3 LB_4 LBX LPR For ER-SPR collets use "AA" type only OAL kg Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONXWS(1) RPMN(2) RPMX(3) DCP(4) TJS GJET ER32 16.00 54.92 63.00 81.00 17.00 24.00 36.44 78.00 95.84 109.00 138.00 7.00 35000 55000 0 1.30 • Minimum coolant pressure 20 bar and flow rate 12 l/min • The spindle provides only external strong coolant jet around the tool • Battery not supplied • Recommended tightening torque for NUT ER GHS 10 NM • For user guide, see pages 790-792 (1) Maximum tool shank diameter (2) Minimum RPM (3) Maximum RPM (4) 1 - Slot for data chip, 0 - Without slot for data chip Spare Parts Designation TJS-GJET-ER32 NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY TJS TSD DISPLAY* * Optional, to be ordered separately 793
