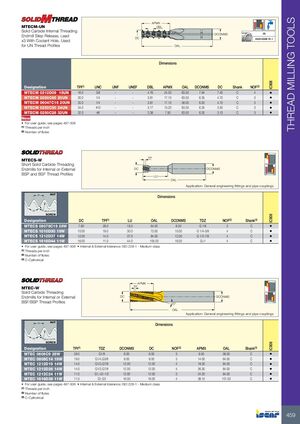

THREAD MILLING TOOLS APMX MTECM-UN DBL Solid Carbide Internal Threading DCONMS 2B Endmill Step Release, Lead DC ANSI/ASME B1.1 x3 With Coolant Hole, Used for UN Thread Profiles OAL Dimensions IC908 Designation TPI(1) UNC UNF UNEF DBL APMX OAL DCONMS DC Shank NOF(2) MTECM 0312D09 16UN 16.0 3/8 - - 4.76 24.50 63.50 7.94 7.40 C 4 • MTECM 0250C65 20UN 20.0 1/4 - - 3.81 17.10 63.50 6.35 4.70 C 3 • MTECM 06047C16 20UN 20.0 1/4 - - 3.81 17.10 58.00 6.00 4.70 C 3 • MTECM 0250C50 24UN 24.0 #10 - - 3.17 13.20 63.50 6.35 3.50 C 3 • MTECM 0250C28 32UN 32.0 #8 - - 2.38 7.50 63.50 6.35 3.10 C 3 • New • For user guide, see pages 497-506 (1) Threads per inch (2) Number of flutes TP MTECS-W Short Solid Carbide Threading Endmills for Internal or External DC DCONMS BSP and BSF Thread Profiles LU OAL Application: General engineering fittings and pipe couplings NUT TP Dimensions 55˚ RE=0.137TP SCREW IC908 Designation DC TPI(1) LU OAL DCONMS TDZ NOF(2) Shank(3) MTECS 08078C19 28W 7.80 28.0 19.5 64.00 8.00 G 1/8 3 C • MTECS 1010D30 19W 10.00 19.0 30.0 73.00 10.00 G 1/4-3/8 4 C • MTECS 1212D37 14W 12.00 14.0 37.0 84.00 12.00 G 1/2-7/8 4 C • MTECS 1616D44 11W 16.00 11.0 44.0 105.00 16.00 G>1 4 C • • For user guide, see pages 497-506 • Internal & External tolerance: ISO 228-1 - Medium class (1) Threads per inch (2) Number of flutes (3) C-Cylindrical APMX TP MTEC-W Solid Carbide Threading Endmills for Internal or External DC DCONMS BSF/BSP Thread Profiles 15° OAL Application: General engineering fittings and pipe couplings NUT TP Dimensions 55˚ RE=0.137TP SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 28W 28.0 G1/8 6.00 6.00 3 9.50 58.00 C • MTEC 0808C14 19W 19.0 G1/4,G3/8 8.00 8.00 3 14.00 64.00 C • MTEC 1212D19 14W 14.0 G1/2,G7/8 12.00 12.00 4 19.30 84.00 C • MTEC 1212D26 14W 14.0 G1/2,G7/8 12.00 12.00 4 26.30 84.00 C • MTEC 1212C24 11W 11.0 G1,-G1-1/2 12.00 12.00 3 24.20 84.00 C • MTEC 1616D38 11W 11.0 G1,G3 16.00 16.00 4 38.10 101.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ISO 228-1 - Medium class (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 459
