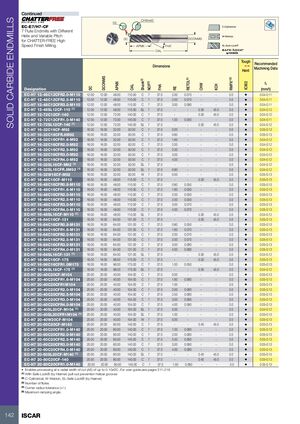

Концевые фрезы из твердого сплава (продолжение)

EC-E7/H7-CF

7-зубые концевые фрезы с различной спиралью и переменным шагом для безвибрационной высокоскоростной чистовой фрезеровки

Размеры и рекомендуемые режимы обработки

Обозначение DC d Длина
фрезы		 OAL Тип
хвостовика		 Кол-во
зубьев		 Параметр Допуск
радиуса		 Допуск CHW Угол
спирали		 KCH Рекомендуемо fz
(мм/зуб)
EC-H7 12-48C12CFR2.0-M110 12.00 12.00 48.00 110.00 C 7 37.0 2.00 0.070 – – 3.0 • 0.04–0.11
EC-H7 12-48C12CFR2.5-M110 12.00 12.00 48.00 110.00 C 7 37.0 2.50 0.070 – – 3.0 • 0.04–0.11
EC-H7 12-48C12CFR3.0-M110 12.00 12.00 48.00 110.00 C 7 37.0 3.00 0.080 – – 3.0 • 0.04–0.11
EC-H7 12-48SL12CF-110 (1) 12.00 12.00 48.00 110.00 SL 7 37.0 – – 0.30 45.0 3.0 • 0.04–0.12
EC-H7 12-72C12CF-140 12.00 12.00 72.00 140.00 C 7 37.0 – – 0.30 45.0 3.0 • 0.04–0.12
EC-H7 12-72C12CFR1.0-M140 12.00 12.00 72.00 140.00 C 7 37.0 1.00 0.050 – – 3.0 • 0.04–0.11
EC-H7 12-72SL12CF-140 (1) 12.00 12.00 72.00 140.00 SL 7 37.0 – – 0.30 45.0 3.0 • 0.04–0.12
EC-H7 16-32C16CF-M92 16.00 16.00 32.00 92.00 C 7 37.0 0.00 – – – 3.0 • 0.05–0.13
EC-H7 16-32C16CFR.8M92 16.00 16.00 32.00 92.00 C 7 37.0 0.80 – – – 3.0 • 0.05–0.13
EC-H7 16-32C16CFR1.6-M92 16.00 16.00 32.00 92.00 C 7 37.0 1.60 – – – 3.0 • 0.04–0.12
EC-H7 16-32C16CFR2.0-M92 16.00 16.00 32.00 92.00 C 7 37.0 2.00 – – – 3.0 • 0.04–0.12
EC-H7 16-32C16CFR2.5-M92 16.00 16.00 32.00 92.00 C 7 37.0 2.50 – – – 3.0 • 0.04–0.12
EC-H7 16-32C16CFR3.0-M92 16.00 16.00 32.00 92.00 C 7 37.0 3.00 – – – 3.0 • 0.04–0.12
EC-H7 16-32C16CFR4.0-M92 16.00 16.00 32.00 92.00 C 7 37.0 4.00 – – – 3.0 • 0.04–0.12
EC-H7 16-32SL16CF-M92 (1) 16.00 16.00 32.00 92.00 SL 7 37.0 – – – – 3.0 • 0.04–0.12
EC-H7 16-32SL16CFR.8M92 (1) 16.00 16.00 32.00 92.00 SL 7 37.0 0.80 – – – 3.0 • 0.04–0.12
EC-H7 16-32W16CF-M92 16.00 16.00 32.00 92.00 W 7 37.0 0.00 – – – 3.0 • 0.05–0.13
EC-H7 16-48C16CF-M110 16.00 16.00 48.00 110.00 C 7 37.0 – – 0.30 45.0 3.0 • 0.05–0.13
EC-H7 16-48C16CFR0.8-M110 16.00 16.00 48.00 110.00 C 7 37.0 0.80 0.050 – – 3.0 • 0.05–0.13
EC-H7 16-48C16CFR1.6-M110 16.00 16.00 48.00 110.00 C 7 37.0 1.60 0.050 – – 3.0 • 0.05–0.13
EC-H7 16-48C16CFR2.0-M110 16.00 16.00 48.00 110.00 C 7 37.0 2.00 0.050 – – 3.0 • 0.05–0.13
EC-H7 16-48C16CFR2.5-M110 16.00 16.00 48.00 110.00 C 7 37.0 2.50 0.050 – – 3.0 • 0.05–0.13
EC-H7 16-48C16CFR3.0-M110 16.00 16.00 48.00 110.00 C 7 37.0 3.00 0.070 – – 3.0 • 0.05–0.13
EC-H7 16-48C16CFR4.0-M110 16.00 16.00 48.00 110.00 C 7 37.0 4.00 0.070 – – 3.0 • 0.05–0.13
EC-H7 16-48SL16CF-M110 (1) 16.00 16.00 48.00 110.00 SL 7 37.0 – – 0.30 45.0 3.0 • 0.04–0.12
EC-H7 16-64C16CF-131 16.00 16.00 64.00 131.00 C 7 37.0 – – 0.30 45.0 3.0 • 0.05–0.13
EC-H7 16-64C16CFR0.8-M131 16.00 16.00 64.00 131.00 C 7 37.0 0.80 0.050 – – 3.0 • 0.05–0.13
EC-H7 16-64C16CFR1.6-M131 16.00 16.00 64.00 131.00 C 7 37.0 1.60 0.070 – – 3.0 • 0.05–0.13
EC-H7 16-64C16CFR2.0-M131 16.00 16.00 64.00 131.00 C 7 37.0 2.00 0.070 – – 3.0 • 0.05–0.13
EC-H7 16-64C16CFR2.5-M131 16.00 16.00 64.00 131.00 C 7 37.0 2.50 0.070 – – 3.0 • 0.05–0.13
EC-H7 16-64C16CFR3.0-M131 16.00 16.00 64.00 131.00 C 7 37.0 3.00 0.080 – – 3.0 • 0.05–0.13
EC-H7 16-64C16CFR4.0-M131 16.00 16.00 64.00 131.00 C 7 37.0 4.00 0.080 – – 3.0 • 0.05–0.13
EC-H7 16-64SL16CF-131 (1) 16.00 16.00 64.00 131.00 SL 7 37.0 – – 0.30 45.0 3.0 • 0.04–0.12
EC-H7 16-96C16CF-175 16.00 16.00 96.00 175.00 C 7 37.0 – – 0.30 45.0 3.0 • 0.05–0.13
EC-H7 16-96C16CFR1.0M175 16.00 16.00 96.00 175.00 C 7 37.0 1.00 0.050 – – 3.0 • 0.05–0.13
EC-H7 16-96SL16CF-175 (1) 16.00 16.00 96.00 175.00 SL 7 37.0 – – 0.30 45.0 3.0 • 0.04–0.12
EC-H7 20-40C20CF-M104 20.00 20.00 40.00 104.00 C 7 37.0 0.00 – – – 3.0 • 0.05–0.13
EC-H7 20-40C20CFR1.6-M104 20.00 20.00 40.00 104.00 C 7 37.0 1.60 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-40C20CFR1M104 20.00 20.00 40.00 104.00 C 7 37.0 1.00 – – – 3.0 • 0.05–0.13
EC-H7 20-40C20CFR2.0-M104 20.00 20.00 40.00 104.00 C 7 37.0 2.00 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-40C20CFR2.5-M104 20.00 20.00 40.00 104.00 C 7 37.0 2.50 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-40C20CFR3.0-M104 20.00 20.00 40.00 104.00 C 7 37.0 3.00 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-40C20CFR4.0-M104 20.00 20.00 40.00 104.00 C 7 37.0 4.00 0.080 – – 3.0 • 0.05–0.13
EC-H7 20-40SL20CF-M104 (1) 20.00 20.00 40.00 104.00 SL 7 37.0 0.00 – – – 3.0 • 0.04–0.12
EC-H7 20-40SL20CFR1M104 (1) 20.00 20.00 40.00 104.00 SL 7 37.0 1.00 – – – 3.0 • 0.05–0.15
EC-H7 20-40W20CF-M104 20.00 20.00 40.00 104.00 W 7 37.0 0.00 – – – 3.0 • 0.05–0.13
EC-H7 20-60C20CF-M140 20.00 20.00 60.00 140.00 C 7 37.0 – – 0.40 45.0 3.0 • 0.05–0.13
EC-H7 20-60C20CFR1.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 1.00 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-60C20CFR2.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 2.00 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-60C20CFR2.5-M140 20.00 20.00 60.00 140.00 C 7 37.0 2.50 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-60C20CFR3.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 3.00 0.060 – – 3.0 • 0.05–0.13
EC-H7 20-60C20CFR4.0-M140 20.00 20.00 60.00 140.00 C 7 37.0 4.00 0.080 – – 3.0 • 0.05–0.13
EC-H7 20-60SL20CF-M140 (1) 20.00 20.00 60.00 140.00 SL 7 37.0 – – 0.40 45.0 3.0 • 0.05–0.15
EC-H7 20-80C20CF-140 20.00 20.00 80.00 140.00 C 7 37.0 – – 0.40 45.0 3.0 • 0.05–0.13
EC-H7 20-80C20CFR1.0-M140 20.00 20.00 80.00 140.00 C 7 37.0 1.00 0.060 – – 3.0 • 0.05–0.13
  • • Обеспечивает обработку при радиальной ширине срезаемого слоя (AE) до 0,10×DC. Руководство пользователя см. стр. 211–218.
  • (1) С канавками для предотвращения выпадения Safe-Lock® (от Haimer)
  • (2) C-цилиндрический, W-Weldon, SL-Safe-Lock® (от Haimer)
  • (3) Количество зубьев
  • (4) Допуск радиуса кромки (+/–)
  • (5) Максимальный угол наклона
