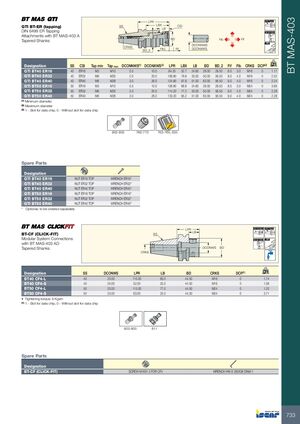

BT MAS-403 LPR AT3 Taper LBX CSI GTI BT-ER (tapping) SS LB DIN 6499 ER Tapping 58-60 HRc Attachments with BT MAS-403 A BD Flb Flf Tapered Shanks √N5 DCONNWS CRKS Flb Flf DCONXWS BD_2 kg Designation SS CSI Tap min Tap max DCONNWS(1) DCONXWS(2) LPR LBX LB BD BD_2 Flf Flb CRKS DCP(3) GTI BT40 ER16 40 ER16 M3 M10 0.5 10.0 84.20 52.7 24.60 28.00 29.50 8.0 3.0 M16 0 1.17 GTI BT40 ER32 40 ER32 M6 M20 2.0 20.0 106.80 79.8 33.00 50.00 56.50 9.0 4.0 M16 0 2.52 GTI BT40 ER40 40 ER40 M6 M28 3.0 26.0 124.80 97.8 51.00 63.00 56.50 9.0 4.0 M16 0 2.24 GTI BT50 ER16 50 ER16 M3 M10 0.5 10.0 106.80 68.8 24.60 28.00 29.50 8.0 3.0 M24 0 3.85 GTI BT50 ER32 50 ER32 M6 M20 2.0 20.0 114.20 77.2 33.00 50.00 56.50 9.0 4.0 M24 0 2.28 GTI BT50 ER40 50 ER40 M6 M28 3.0 26.0 133.20 95.2 51.00 63.00 56.50 9.0 4.0 M24 0 2.28 (1) Minimum diameter (2) Maximum diameter (3) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 766-773 763-765, 635 Spare Parts Designation GTI BT40 ER16 NUT ER16 TOP WRENCH ER16* GTI BT40 ER32 NUT ER32 TOP WRENCH ER32* GTI BT40 ER40 NUT ER40 TOP WRENCH ER40* GTI BT50 ER16 NUT ER16 TOP WRENCH ER16* GTI BT50 ER32 NUT ER32 TOP WRENCH ER32* GTI BT50 ER40 NUT ER40 TOP WRENCH ER40* * Optional, to be ordered separately LPR A 0.003 A AT3 Taper LB BT-CF (CLICK-FIT) SS Modular System Connections 58-60 HRc √N5 with BT MAS-403 AD Tapered Shanks DCONWS BD CRKS kg Designation SS DCONWS LPR LB BD CRKS DCP(1) BT40 CF4-L 40 25.00 110.00 83.0 44.50 M16 0 1.74 BT40 CF4-S 40 25.00 52.00 25.0 44.50 M16 0 1.08 BT50 CF4-L 50 25.00 115.00 77.0 44.50 M24 0 1.20 BT50 CF4-S 50 25.00 63.00 25.0 44.50 M24 0 3.71 • Tightening torque: 6 Kgxm (1) 1 - Slot for data chip, 0 - Without slot for data chip 802-805 811 Spare Parts Designation BT-CF (CLICK-FIT) SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 733
