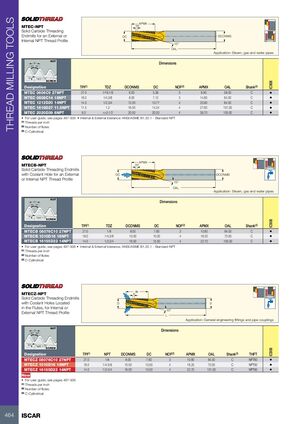

THREAD MILLING TOOLS APMX MTEC-NPT TP Solid Carbide Threading Endmills for an External or DC DCONMS Internal NPT Thread Profile 15° OAL Application: Steam, gas and water pipes NUT TP Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTEC 0606C9 27NPT 27.0 1/16,1/8 6.00 5.36 3 9.90 58.00 C • MTEC 0808C14 18NPT 18.0 1/4,3/8 8.00 7.12 3 14.80 64.00 C • MTEC 1212D20 14NPT 14.0 1/2,3/4 12.00 10.77 4 20.90 84.00 C • MTEC 1616D27 11.5NPT 11.5 1,2 16.00 14.24 4 27.60 101.00 C • MTEC 2020D39 8NPT 8.0 =>2-1/2 20.00 20.00 4 39.70 105.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ANSI/ASME B1.20.1 - Standard NPT (1) Threads per inch (2) Number of flutes (3) C-Cylindrical APMX MTECB-NPT TP Solid Carbide Threading Endmills with Coolant Hole for an External DC DCONMS or Internal NPT Thread Profile 15° OAL Application: Steam, gas and water pipes NUT TP Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) TDZ DCONMS DC NOF(2) APMX OAL Shank(3) MTECB 08076C10 27NPT 27.0 1/8 8.00 7.60 3 10.80 64.00 C • MTECB 1010D16 18NPT 18.0 1/4,3/8 10.00 10.00 4 16.20 73.00 C • MTECB 16155D22 14NPT 14.0 1/2,3/4 16.00 15.50 4 22.70 105.00 C • • For user guide, see pages 497-506 • Internal & External tolerance: ANSI/ASME B1.20.1 - Standard NPT (1) Threads per inch (2) Number of flutes (3) C-Cylindrical ap MTECZ-NPT P Solid Carbide Threading Endmills with Coolant Holes Located D d in the Flutes, for Internal or 15° External NPT Thread Profile L Application: General engineering fittings and pipe couplings NUT P Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW IC908 Designation TPI(1) NPT DCONMS DC NOF(2) APMX OAL Shank(3) THFT MTECZ 08076C10 27NPT 27.0 1/8 8.00 7.60 3 10.80 64.00 C NPT60 • MTECZ 1010D16 18NPT 18.0 1/4-3/8 10.00 10.00 4 16.20 73.00 C NPT60 • MTECZ 16155D22 14NPT 14.0 1/2-3/4 16.00 15.50 4 22.70 101.00 C NPT60 • New • For user guide, see pages 497-506 (1) Threads per inch (2) Number of flutes (3) C-Cylindrical 464 ISCAR
