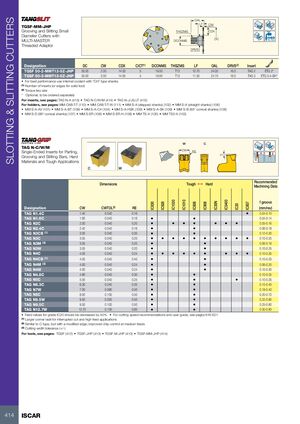

SLOTTING & SLITTING CUTTERS OAL LF CW TGSF-MM-JHP Grooving and Slitting Small THSZMS CDX Diameter Cutters with DC MULTI-MASTER DCONMS Bar Max Threaded Adaptor DRVS Designation DC CW CDX CICT(1) DCONMS THSZMS LF OAL DRVS(2) Insert TGSF 50-2-MMT12-5Z-JHP 50.00 2.00 14.00 5 19.00 T12 10.70 24.00 16.0 TAG 2 ETG 2* TGSF 50-3-MMT12-5Z-JHP 50.00 3.00 14.00 5 19.00 T12 11.50 24.70 16.0 TAG 3 ETG 3-4-SH* • For best performance use internal coolant with “CH” type shanks (1) Number of inserts (or edges for solid tool) (2) Torque key size * Optional, to be ordered separately For inserts, see pages: TAG N-A (415) • TAG N-C/W/M (414) • TAG N-J/JS/JT (415) For holders, see pages: MM CAB-T-T (110) • MM CAB-T-T-W (111) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) W C TAG N-C/W/M CW Single-Ended Inserts for Parting, RE 7º Grooving and Slitting Bars, Hard Materials and Tough Applications Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC1010 IC5400 IC30N IC830 IC928 IC808 IC908 IC807 IC20 Designation CW CWTOL(3) RE (mm/rev) TAG N1.4C 1.40 0.040 0.16 • 0.04-0.10 TAG N1.6C 1.60 0.040 0.16 • • 0.04-0.14 TAG N2C 2.00 0.040 0.20 • • • • • • • 0.05-0.16 TAG N2.4C 2.40 0.040 0.16 • • 0.06-0.18 TAG N3CB (1) 3.00 0.040 0.35 • • 0.12-0.30 TAG N3C 3.05 0.040 0.20 • • • • • • • • • • 0.10-0.25 TAG N3M (2) 3.05 0.040 0.20 • • 0.06-0.18 TAG N3W 3.05 0.040 0.20 • • 0.10-0.25 TAG N4C 4.00 0.040 0.24 • • • • • • • • • 0.10-0.30 TAG N4CB (1) 4.00 0.040 0.40 • • 0.10-0.33 TAG N4M (2) 4.00 0.040 0.24 • • 0.06-0.20 TAG N4W 4.00 0.040 0.24 • • 0.10-0.30 TAG N4.8C 4.80 0.040 0.30 • • 0.10-0.35 TAG N5C 5.05 0.040 0.25 • • • 0.10-0.35 TAG N6.3C 6.30 0.040 0.35 • • 0.15-0.40 TAG N7W 7.00 0.080 0.50 • • 0.18-0.40 TAG N8C 8.00 0.100 0.50 • • 0.20-0.70 TAG N9.5W 9.50 0.050 0.50 • • 0.22-0.80 TAG N9.5C 9.50 0.100 0.50 • • 0.25-0.80 TAG N12.7W 12.70 0.100 0.85 • • 0.30-0.80 • Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 616-621 (1) Larger corner radii for interrupted cut and high feed applications (2) Similar to C-type, but with a modified edge; improved chip control at medium feeds (3) Cutting width tolerance (+/-) For tools, see pages: TGSF (412) • TGSF-JHP (413) • TGSF-M-JHP (413) • TGSF-MM-JHP (414) 414 ISCAR
