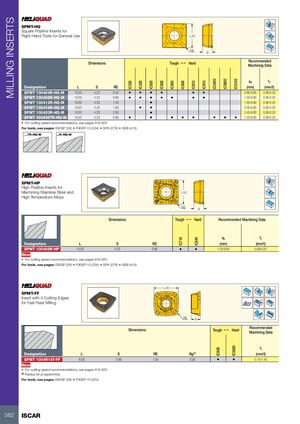

MILLING INSERTS SPMT-HQ Square Positive Inserts for Right-Hand Tools for General Use L/IC RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC5400 IC5600 IC5100 IC330 IC328 IC830 IC928 IC950 IC808 IC810 IC910 Designation L S RE (mm) (mm/t) SPMT 100404R-HQ-M 10.20 4.23 0.40 • • • • • • 0.80-9.60 0.08-0.20 SPMT 100408R-HQ-M 10.20 4.23 0.60 • • • • • • • 1.00-9.60 0.08-0.20 SPMT 100412R-HQ-M 10.20 4.23 1.20 • 1.60-9.60 0.08-0.20 SPMT 100416R-HQ-M 10.20 4.23 1.60 • • 2.00-9.60 0.08-0.20 SPMT 100420R-HQ-M 10.20 4.23 2.00 • 2.40-9.60 0.08-0.20 SPMT 100408TR-HQ-M 10.20 4.23 0.80 • • • • • • • • 1.20-9.60 0.08-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90SP (28) • F90SP-10 (234) • SPK (279) • SSB (410) ...TR-HQ-M ...R-HQ-M SPMT-HP High Positive Inserts for Machining Stainless Steel and L/IC High Temperature Alloys RE S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC716 IC840 Designation L S RE (mm) (mm/t) SPMT 100408R-HP 10.20 4.23 0.80 • • 1.20-9.60 0.08-0.20 New • For cutting speed recommendations, see pages 616-620 For tools, see pages: E90SP (28) • F90SP-10 (234) • SPK (279) • SSB (410) L/IC SPMT-FF Insert with 4 Cutting Edges Rd° for Fast Feed Milling RE S Recommended Dimensions Tough 1 Hard Machining Data fz IC5600 IC808 Designation L S RE Rg(1) (mm/t) SPMT 1004R15T-FF 6.00 3.56 1.50 2.00 • • 0.10-1.40 New • For cutting speed recommendations, see pages 616-620 (1) Radius for programming For tools, see pages: E90SP (28) • F90SP-10 (234) 562 ISCAR
