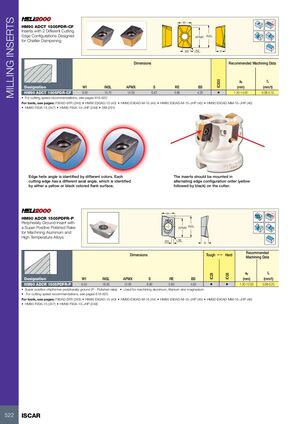

MILLING INSERTS W1 Rd° HM90 ADCT 1505PDR-CF Inserts with 2 Different Cutting Edge Configurations Designed APMX lNSL for Chatter Dampening BS RE S Dimensions Recommended Machining Data ap fz IC830 Designation W1 INSL APMX S RE BS (mm) (mm/t) HM90 ADCT 1505PDR-CF 9.30 15.70 14.00 6.40 0.80 4.20 • 1.20-14.00 0.08-0.15 • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) Edge helix angle is identified by different colors. Each The inserts should be mounted in cutting edge has a different axial angle, which is identified alternating edge configuration order (yellow by either a yellow or black colored flank surface. followed by black) on the cutter. W1 Rd° HM90 ADCR 1505PDFR-P Peripherally Ground Insert with a Super Positive Polished Rake APMX INSL for Machining Aluminum and High Temperature Alloys BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC28 IC08 Designation W1 INSL APMX S RE BS (mm) (mm/t) HM90 ADCR 1505PDFR-P 9.55 16.50 12.00 6.90 0.80 4.00 • • 1.20-12.00 0.08-0.25 • Super positive chipformer peripherally ground (P - Polished rake) • Used for machining aluminum, titanium and magnesium • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) 522 ISCAR
