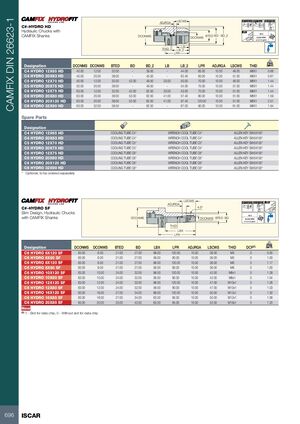

CAMFIX DIN 26623-1 LSCWS A 0.003 A AT3 Taper 58-60 HRc ADJRGA C#-HYDRO HD Hydraulic Chucks with √N5 G2.5 CAMFIX Shanks DCONMS DCONWS BTED BD BD_2 25,000 RPM or U<1.0 gmm LB THID LB_2 LPR kg Designation DCONMS DCONWS BTED BD BD_2 LB LB_2 LPR ADJRGA LSCWS THID C4 HYDRO 12X65 HD 40.00 12.00 32.00 - 39.50 - 44.00 65.00 10.00 46.00 M8X1 0.66 C4 HYDRO 20X83 HD 40.00 20.00 38.00 - 45.50 - 62.40 83.00 10.00 51.00 M8X1 0.67 C5 HYDRO 12X70 HD 50.00 12.00 32.00 42.00 49.50 33.00 50.00 70.00 10.00 46.00 M8X1 1.44 C5 HYDRO 20X75 HD 50.00 20.00 38.00 - 49.50 - 54.00 75.00 10.00 51.00 M8X1 1.44 C6 HYDRO 12X75 HD 63.00 12.00 32.00 42.00 62.50 33.00 53.00 75.00 10.00 51.00 M8X1 1.44 C6 HYDRO 20X80 HD 63.00 20.00 38.00 53.00 62.50 41.00 57.40 80.00 10.00 51.00 M8X1 1.59 C6 HYDRO 20X120 HD 63.00 20.00 38.00 52.50 62.50 41.00 97.40 120.00 10.00 51.00 M8X1 2.51 C6 HYDRO 32X90 HD 63.00 32.00 58.50 - 62.50 - 67.00 90.00 10.00 61.00 M8X1 1.94 Spare Parts Designation C4 HYDRO 12X65 HD COOLING TUBE C4* WRENCH COOL TUBE C4* ALLEN KEY SW5X100* C4 HYDRO 20X83 HD COOLING TUBE C4* WRENCH COOL TUBE C4* ALLEN KEY SW5X100* C5 HYDRO 12X70 HD COOLING TUBE C5* WRENCH COOL TUBE C5* ALLEN KEY SW5X100* C5 HYDRO 20X75 HD COOLING TUBE C5* WRENCH COOL TUBE C5* ALLEN KEY SW5X100* C6 HYDRO 12X75 HD COOLING TUBE C6* WRENCH COOL TUBE C6* ALLEN KEY SW5X100* C6 HYDRO 20X80 HD COOLING TUBE C6* WRENCH COOL TUBE C6* ALLEN KEY SW5X100* C6 HYDRO 20X120 HD COOLING TUBE C6* WRENCH COOL TUBE C6* ALLEN KEY SW5X100* C6 HYDRO 32X90 HD COOLING TUBE C6* WRENCH COOL TUBE C6* ALLEN KEY SW5X100* * Optional, to be ordered separately LSCWS A 0.003 A 58-60 HRc √N5 ADJRGA C#-HYDRO SF 4.5º Slim Design, Hydraulic Chucks G2.5 with CAMFIX Shanks DCONMS DCONWS BTED BD 25,000 RPM or U<1.0 gmm THID LBX LPR kg Designation DCONMS DCONWS BTED BD LBX LPR ADJRGA LSCWS THID DCP(1) C6 HYDRO 6X120 SF 63.00 6.00 21.00 27.00 98.00 120.00 10.00 36.00 M5 0 0.00 C6 HYDRO 6X80 SF 63.00 6.00 21.00 27.00 58.00 80.00 10.00 36.00 M5 0 1.00 C6 HYDRO 8X120 SF 63.00 8.00 21.00 27.00 98.00 120.00 10.00 36.00 M6 0 1.17 C6 HYDRO 8X80 SF 63.00 8.00 21.00 27.00 58.00 80.00 10.00 36.00 M6 0 1.00 C6 HYDRO 10X120 SF 63.00 10.00 24.00 32.00 98.00 120.00 10.00 42.00 M8x1 0 1.28 C6 HYDRO 10X80 SF 63.00 10.00 24.00 32.00 58.00 80.00 10.00 42.00 M8x1 0 1.04 C6 HYDRO 12X120 SF 63.00 12.00 24.00 32.00 98.00 120.00 10.00 47.00 M10x1 0 1.26 C6 HYDRO 12X80 SF 63.00 12.00 24.00 32.00 58.00 80.00 10.00 47.00 M10x1 0 1.03 C6 HYDRO 16X120 SF 63.00 16.00 27.00 34.00 98.00 120.00 10.00 50.00 M12x1 0 1.30 C6 HYDRO 16X85 SF 63.00 16.00 27.00 34.00 63.00 85.00 10.00 50.00 M12x1 0 1.08 C6 HYDRO 20X85 SF 63.00 20.00 33.00 42.00 63.00 85.00 10.00 52.00 M16x1 0 1.20 New (1) 1 - Slot for data chip, 0 - Without slot for data chip 696 ISCAR
