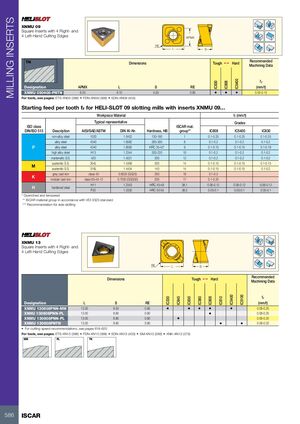

MILLING INSERTS XNMU 09 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges APMX RE L S TN Recommended Dimensions Tough 1 Hard Machining Data fz IC5400 IC830 IC808 Designation APMX L S RE (mm/t) XNMU 090408-PNTN 8.20 9.10 5.95 0.80 • • • 0.05-0.15 For tools, see pages: ETS-XN09 (388) • FDN-XN09 (398) • SDN-XN09 (405) Starting feed per tooth fz for HELI-SLOT 09 slotting mills with inserts XNMU 09… Workpiece Material fz (mm/t) Typical representative Grades ISO class ISCAR mat. DIN/ISO 513 Description AISI/SAE/ASTM DIN W.-Nr. Hardness, HB group** IC808 IC5400 IC830 non-alloy steel 1020 1.0402 130-180 1 0.1-0.25 0.1-0.25 0.1-0.25 alloy steel 4340 1.6582 260-300 8 0.1-0.2 0.1-0.2 0.1-0.2 P alloy steel 4340 1.6582 HRC 35-42* 9 0.1-0.15 0.1-0.15 0.1-0.18 high alloy steel H13 1.2344 200-220 10 0.1-0.2 0.1-0.2 0.1-0.2 martensitic S.S. 420 1.4021 200 12 0.1-0.2 0.1-0.2 0.1-0.2 austenitic S.S. 304L 1.4306 200 14 0.1-0.15 0.1-0.15 0.1-0.15 M austenitic S.S. 316L 1.4404 140 14 0.1-0.15 0.1-0.15 0.1-0.2 grey cast iron class 40 0.6025 (GG25) 250 16 0.1-0.3 K nodular cast iron class 65-45-12 0.7050 (GGG50) 200 17 0.1-0.25 H11 1.2343 HRC 45-49 38.1 0.06-0.12 0.06-0.12 0.06-0.12 H hardened steel P20 1.2330 HRC 50-55 38.2 0.05-0.1 0.05-0.1 0.05-0.1 * Quenched and tempered ** ISCAR material group in accordance with VDI 3323 standard *** Recommendation for side slotting XNMU 13 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges RE L S Recommended Dimensions Tough 1 Hard Machining Data fz IC5400 IC5100 IC330 IC845 IC830 IC380 IC808 IC810 Designation L S RE (mm/t) XNMU 130608PNN-MM 13.00 8.50 0.80 • • • • • 0.08-0.20 XNHU 130608PNN-PL 13.00 8.80 0.80 • 0.08-0.20 XNMU 130608PNN-PL 13.00 8.80 0.80 • 0.08-0.20 XNMU 130608PNTN 13.00 8.80 0.80 • • 0.08-0.20 • For cutting speed recommendations, see pages 616-620 For tools, see pages: ETS-XN13 (388) • FDN-XN13 (398) • SDN-XN13 (405) • SM-XN13 (286) • XNK-XN13 (279) MM PL TN 586 ISCAR
