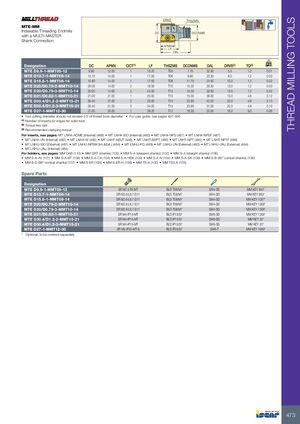

THREAD MILLING TOOLS DRVS THSZMS MTE-MM Indexable Threading Endmills DC DCONMS with a MULTI-MASTER Shank Connection APMX LF OAL kg Designation DC APMX CICT(1) LF THSZMS DCONMS OAL DRVS(2) TQ(3) MTE D9.9-1-MMT05-12 9.90 12.00 1 16.20 T05 7.70 32.30 5.5 1.2 0.01 MTE D13.7-1-MMT06-14 13.70 14.00 1 17.00 T06 9.60 23.30 8.0 1.2 0.03 MTE D15.8-1-MMT08-14 15.80 14.00 1 17.00 T08 11.70 24.50 10.0 1.2 0.02 MTE D20/D0.79-2-MMT10-14 20.00 14.00 2 18.00 T10 15.30 29.30 13.0 1.2 0.03 MTE D20/D0.79-3-MMT10-14 20.00 14.00 3 24.00 T10 15.30 35.30 13.0 1.2 0.02 MTE D21/D0.82-1-MMT10-21 21.00 21.00 1 25.00 T10 15.30 36.30 13.0 4.8 0.12 MTE D30.4/D1.2-2-MMT15-21 30.40 21.00 2 25.00 T15 23.90 42.00 20.0 4.8 0.13 MTE D30.4/D1.2-3-MMT15-21 30.40 21.00 3 34.00 T15 23.90 51.00 20.0 4.8 0.10 MTE D27-1-MMT12-30 27.00 30.00 1 38.20 T12 18.30 52.00 16.0 9.0 0.06 • Tool cutting diameter should not exceed 2/3 of thread bore diameter • For user guide, see pages 497-506 (1) Number of inserts (or edges for solid tool) (2) Torque key size (3) Recommended clamping torque For inserts, see pages: MT LNH#-ACME (Internal) (488) • MT LNH#-ISO (Internal) (480) • MT LNH#-NPS (487) • MT LNH#-NPSF (487) • MT LNH#-UN (Internal) (482) • MT LNH#-W (485) • MT LNHT-ABUT (488) • MT LNHT-BSPT (486) • MT LNHT-NPT (485) • MT LNHT-NPTF (486) • MT LNHU-ISO (External) (481) • MT LNHU-NPSM (Int.&Ext.) (484) • MT LNHU-PG (489) • MT LNHU-UN (External) (483) • MT LNHU-UNJ (External) (484) • MT LNHU-UNJ (Internal) (484) For holders, see pages: MM CAB (110) • MM GRT (shanks) (105) • MM S-A (stepped shanks) (102) • MM S-A (straight shanks) (106) • MM S-A-AV (101) • MM S-A-BT (109) • MM S-A-C# (104) • MM S-A-HSK (109) • MM S-A-N (104) • MM S-A-SK (109) • MM S-B (85° conical shanks) (106) • MM S-D (89° conical shanks) (107) • MM S-ER (108) • MM S-ER-H (108) • MM TS-A (105) • MM TS2-A (105) Spare Parts Designation MTE D9.9-1-MMT05-12 SR M2.5-T8-MT BLD T08/M7 SW4-SD MM KEY 6X4* MTE D13.7-1-MMT06-14 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MM KEY 8X5* MTE D15.8-1-MMT08-14 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MM KEY 10X7* MTE D20/D0.79-2-MMT10-14 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MM KEY 13X8* MTE D20/D0.79-3-MMT10-14 SR M2.6-L6.7-S11 BLD T08/M7 SW4-SD MM KEY 13X8* MTE D21/D0.82-1-MMT10-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MM KEY 13X8* MTE D30.4/D1.2-2-MMT15-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MM KEY 20* MTE D30.4/D1.2-3-MMT15-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MM KEY 20* MTE D27-1-MMT12-30 SR M5-IP25-MT-S BLD IP25/S7 SW6-T MM KEY 16X9* * Optional, to be ordered separately 473
