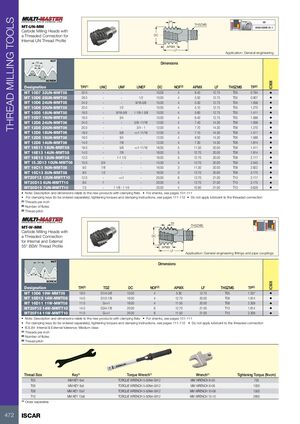

THREAD MILLING TOOLS TP 2B THSZMS MT-UN-MM ANSI/ASME B1.1 Carbide Milling Heads with a Threaded Connection for DC Internal UN Thread Profile APMX LF Application: General engineering NUT TP Dimensions TP/8 60˚ TP/4 SCREW IC908 Designation TPI(1) UNC UNF UNEF DC NOF(2) APMX LF THSZMS TP(3) MT 10D7 32UN-MMT05 32.0 - - - 10.00 4 6.40 12.75 T05 0.794 • MT 10D6 28UN-MMT05 28.0 - - 1/2 10.00 4 5.50 12.75 T05 0.907 • MT 10D6 24UN-MMT05 24.0 - - 9/16-5/8 10.00 4 5.30 12.75 T05 1.058 • MT 10D6 20UN-MMT05 20.0 - 1/2 - 10.00 4 5.10 12.75 T05 1.270 • MT 10D5 18UN-MMT05 18.0 - 9/16-5/8 1 1/8-1 5/8 10.00 4 5.60 12.75 T05 1.411 • MT 10D7 16UN-MMT05 16.0 - 3/4 - 10.00 4 6.40 12.75 T05 1.588 • MT 12D8 24UN-MMT06 24.0 - - 5/8- 11/16 12.00 4 7.40 14.30 T06 1.058 • MT 12D8 20UN-MMT06 20.0 - - 3/4 - 1 12.00 4 7.70 14.30 T06 1.270 • MT 12D8 18UN-MMT06 18.0 - 5/8 =>1 11/16 12.00 4 7.10 14.30 T06 1.411 • MT 12D8 16UN-MMT06 16.0 - 3/4 - 12.00 4 8.00 14.30 T06 1.588 • MT 12D8 14UN-MMT06 14.0 - 7/8 - 12.00 4 7.30 14.30 T06 1.814 • MT 16E11 18UN-MMT08 18.0 - 5/8 =>1 11/16 16.00 5 11.30 20.00 T08 1.411 • MT 16E13 14UN-MMT08 14.0 - 7/8 - 16.00 5 12.70 20.00 T08 1.814 • MT 16E13 12UN-MMT08 12.0 - 1-1 1/2 - 16.00 5 12.70 20.00 T08 2.117 • MT 15.3D13 10UN-MMT08 10.0 3/4 - - 15.30 4 12.70 20.00 T08 2.540 • MT 16C11 9UN-MMT08 9.0 7/8 - - 16.00 3 11.30 20.00 T08 2.822 • MT 16C13 8UN-MMT08 8.0 1.0 - - 16.00 3 12.70 20.00 T08 3.175 • MT20F13 12UN-MMTT10 12.0 - =>1 - 20.00 6 12.70 21.00 T10 2.117 • MT20D13 8UN-MMTT10 8.0 1 - 20.00 4 12.70 21.00 T10 3.175 • MT20D15 7UN-MMTT10 7.0 - 1 1/8 - 1 1/4 - 20.00 4 10.90 21.00 T10 3.629 • • Note: Description and dimensions relate to the new products with clamping flats • For shanks, see pages 101-111 • For clamping keys (to be ordered separately), tightening torques and clamping instructions, see pages 111-112 • Do not apply lubricant to the threaded connection (1) Threads per inch (2) Number of flutes (3) Thread pitch TP THSZMS MT-W-MM Carbide Milling Heads with a Threaded Connection DC for Internal and External 55° BSW Thread Profile APMX LF Application: General engineering fittings and pipe couplings NUT TP Dimensions 55˚ RE=0.137TP SCREW IC908 Designation TPI(1) TDZ DC NOF(2) APMX LF THSZMS TP(3) MT 10D6 19W-MMT05 19.0 G1/4-3/8 10.00 4 5.30 12.75 T05 1.337 • MT 16D13 14W-MMT08 14.0 G1/2-7/8 16.00 4 12.70 20.00 T08 1.814 • MT 16D11 11W-MMT08 11.0 G=>1 16.00 4 11.50 20.00 T08 2.309 • MT20F15 14W-MMTT10 14.0 G3/4-7/8 20.00 6 12.70 21.00 T10 1.814 • MT20F14 11W-MMTT10 11.0 G=>1 20.00 6 11.50 21.00 T10 2.309 • • Note: Description and dimensions relate to the new products with clamping flats • For shanks, see pages 101-111 • For clamping keys (to be ordered separately), tightening torques and clamping instructions, see pages 111-112 • Do not apply lubricant to the threaded connection • B.S.84 Internal & External tolerance: Medium class (1) Threads per inch (2) Number of flutes (3) Thread pitch Thread Size Key(1) Torque Wrench(1) Wrench(1) Tightening Torque (N×cm) T05 MM KEY 6x4 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 6-05 700 T06 MM KEY 8x5 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 8-06 1000 T08 MM KEY 10x7 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 10-08 1500 T10 MM KEY 13x8 TORQUE WRENCH 5-50Nm 9X12 MM WRENCH 13-10 2800 (1) Order separately 472 ISCAR
