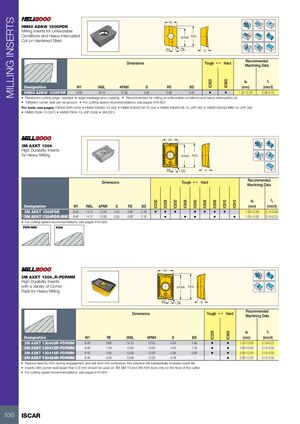

MILLING INSERTS W1 HM90 ADKW 1505PDR Milling Inserts for Unfavorable 1 Rd° Conditions and Heavy Interrupted APMX lNSL Cut on Hardened Steel 2 BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC928 IC908 Designation W1 INSL APMX S RE BS (mm) (mm/t) HM90 ADKW 1505PDR 9.59 16.15 12.00 5.83 0.80 2.45 • • 1.20-12.00 0.08-0.15 • Reinforced cutting edge, resistant to edge breakage and chipping • Recommended for milling at unfavorable conditions and heavy interrupted cut • Different corner radii can be ground • For cutting speed recommendations, see pages 616-620 For tools, see pages: F90AD-SFR (249) • HM90 E90AD-15 (43) • HM90 E90AD-M-15 (44) • HM90 E90AD-M-15-JHP (45) • HM90 E90AD-MM-15-JHP (46) • HM90 F90A-15 (247) • HM90 F90A-15-JHP (248) • SM (291) W1 3M AXKT 1304 High Durability Inserts for Heavy Milling APMX INSL BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC330 IC328 IC830 IC928 IC950 IC808 IC908 IC810 IC910 Designation W1 INSL APMX S RE BS (mm) (mm/t) 3M AXKT 1304PDR 8.40 14.12 12.00 4.55 0.60 2.10 • • • • • • • 1.00-12.00 0.15-0.35 3M AXKT 1304PDR-MM 8.40 14.12 12.00 4.55 0.60 2.10 • • • • • 1.00-12.00 0.10-0.22 • For cutting speed recommendations, see pages 616-620 PDR-MM PDR W1 3M AXKT 1304..R-PDRMM High Durability Inserts with a Variety of Corner APMX INSL Radii for Heavy Milling BS RE S Recommended Dimensions Tough 1 Hard Machining Data ap fz IC328 IC928 Designation W1 RE INSL APMX S BS (mm) (mm/t) 3M AXKT 130408R-PDRMM 8.40 0.80 14.12 12.00 4.54 1.40 • • 1.20-12.00 0.10-0.22 3M AXKT 130412R-PDRMM 8.40 1.20 13.50 12.00 4.42 1.20 • • 1.60-12.00 0.15-0.30 3M AXKT 130416R-PDRMM 8.40 1.60 13.50 12.00 4.36 0.80 • • 2.00-12.00 0.15-0.30 3M AXKT 130424R-PDRMM 8.40 2.40 13.50 12.00 4.18 - • 2.80-12.00 0.15-0.30 • Reduce feed by 50% during engagement and exit from the workpiece; this practice will substantially increase insert life • Inserts with corner radii larger than 0.8 mm should be used on 3M SM-13 and 3M AXK tools only on the face of the cutter • For cutting speed recommendations, see pages 616-620 530 ISCAR
