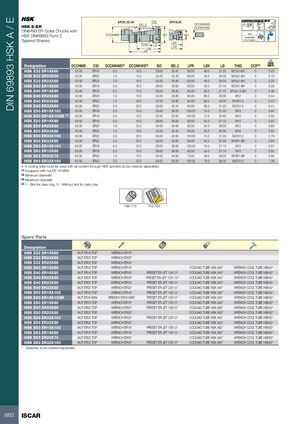

DIN 69893 HSK A / E √N5 ER25,32,40 CSI ER16,20 A 0.003 A 58-60 HRc BD_2 DCONNWS HSK E-ER DCONXWS DIN6499 ER Collet Chucks with G2.5 HSK DIN69893 Form E DCONMS BD BD 25,000 RPM Tapered Shanks LBX or U<1.0 gmm THID LB LPR LBX LPR kg Designation DCONMS CSI DCONNWS(2) DCONXWS(3) BD BD_2 LPR LBX LB THID DCP(4) HSK E32 ER16X60 32.00 ER16 0.5 10.0 28.00 22.40 60.00 40.0 21.50 M10x1-6H 0 0.22 HSK E32 ER20X60 32.00 ER20 1.0 13.0 34.00 25.40 60.00 40.0 26.00 M10x1-6H 0 0.18 HSK E32 ER25X65 32.00 ER25 1.0 16.0 42.00 25.80 65.00 45.0 30.00 M10x1-6H 0 0.20 HSK E40 ER16X60 40.00 ER16 0.5 10.0 28.00 28.00 60.00 40.0 27.10 M12X1-6H 0 0.28 HSK E40 ER16X80 40.00 ER16 0.5 10.0 28.00 28.00 80.00 60.0 27.10 M10x1.5-6H 0 0.36 HSK E40 ER20X80 40.00 ER20 1.0 13.0 34.00 33.80 80.00 60.0 28.00 M12 0 0.44 HSK E40 ER25X80 40.00 ER25 1.0 16.0 42.00 33.80 80.00 60.0 28.00 M18X1.5 0 0.42 HSK E40 ER32X80 40.00 ER32 2.0 20.0 50.00 40.10 80.00 60.0 31.00 M22X1.5 0 0.41 HSK E50 ER16X100 50.00 ER16 0.5 10.0 28.00 28.00 100.00 74.0 27.00 M10 0 0.64 HSK E50 ER16X100M (1) 50.00 ER16 0.5 10.0 22.00 22.00 100.00 74.0 25.60 M10 0 0.55 HSK E50 ER16X80 50.00 ER16 0.5 10.0 28.00 28.00 80.00 54.0 27.10 M10 0 0.55 HSK E50 ER20X80 50.00 ER20 1.0 13.0 34.00 34.00 80.00 54.0 28.00 M12 0 0.60 HSK E50 ER25X80 50.00 ER25 1.0 16.0 42.00 32.40 80.00 54.0 28.00 M16 0 0.60 HSK E50 ER32X100 50.00 ER32 2.0 20.0 50.00 40.00 100.00 74.0 31.00 M22X1.5 0 0.78 HSK E50 ER32X80 50.00 ER32 2.0 20.0 50.00 40.00 80.00 54.0 31.00 M16X1-6H 0 0.63 HSK E63 ER16X100 63.00 ER16 0.5 10.0 28.00 28.00 100.00 74.0 27.10 M10 0 0.91 HSK E63 ER16X80 63.00 ER16 0.5 10.0 28.00 28.00 80.00 54.0 27.10 M10 0 0.92 HSK E63 ER20X75 63.00 ER20 1.0 13.0 34.00 34.00 75.00 49.0 28.00 M18X1-6H 0 0.90 HSK E63 ER32X100 63.00 ER32 2.0 20.0 50.00 50.00 100.00 75.0 36.00 M22X1.5 0 1.28 • A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). (1) Equipped with nut ER 16 MINI (2) Minimum diameter (3) Maximum diameter (4) 1 - Slot for data chip, 0 - Without slot for data chip 766-773 763-765 Spare Parts Designation HSK E32 ER16X60 NUT ER16 TOP WRENCH ER16* HSK E32 ER20X60 NUT ER20 TOP WRENCH ER20* HSK E32 ER25X65 NUT ER25 TOP WRENCH ER25* HSK E40 ER16X60 NUT ER16 TOP WRENCH ER16* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* HSK E40 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* HSK E40 ER20X80 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* HSK E40 ER25X80 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 18X1.5* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* HSK E40 ER32X80 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A40* WRENCH COOL TUBE HSK40* HSK E50 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E50 ER16X100M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E50 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E50 ER20X80 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 10X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E50 ER25X80 NUT ER25 TOP WRENCH ER25* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E50 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E50 ER32X80 NUT ER32 TOP WRENCH ER32* COOLING TUBE HSK A50* WRENCH COOL TUBE HSK50* HSK E63 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK E63 ER16X80 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK E63 ER20X75 NUT ER20 TOP WRENCH ER20* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HSK E63 ER32X100 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* * Optional, to be ordered separately 660 ISCAR
