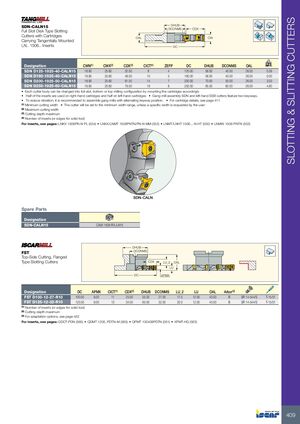

SLOTTING & SLITTING CUTTERS DHUB SDN-CALN15 DCONMS CDX Full Slot Disk Type Slotting Cutters with Cartridges OAL CW Carrying Tangentially Mounted LN.. 1506.. Inserts DC kg Designation CWN(1) CWX(2) CDX(3) CICT(4) ZEFP DC DHUB DCONMS OAL SDN D125-1925-40-CALN15 18.90 25.60 32.50 8 4 125.00 56.00 40.00 26.00 0.39 SDN D160-1925-40-CALN15 18.90 25.60 48.50 10 5 160.00 56.00 40.00 26.00 0.00 SDN D200-1925-50-CALN15 18.90 25.60 61.50 14 7 200.00 70.00 50.00 26.00 3.03 SDN D250-1925-60-CALN15 18.90 25.60 79.00 16 8 250.00 85.00 60.00 26.00 4.80 • Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly • Half of the inserts are used on right-hand cartridges and half on left-hand cartridges • Gang-mill assembly SDN and left-hand SSB cutters feature two keyways. • To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. • For cartridge details, see page 411 (1) Minimum cutting width • The cutter will be set to the minimum width range, unless a specific width is requested by the user (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) For inserts, see pages: LNKX 1506PN-N PL (554) • LNKX/LNMT 1506PNTN/PN-N MM (553) • LNMT/LNHT 1506...-N HT (555) • LNMW 1506 PNTN (553) SDN-CALN Spare Parts Designation SDN-CALN15 CA90 1928-R/L-LN15 DHUB DCONMS FST Top-Side Cutting, Flanged Type Slotting Cutters CDX LU_2 OAL LU DC APMX Designation DC APMX CICT(1) CDX(2) DHUB DCONMS LU_2 LU OAL Arbor(3) FST D100-12-27-R10 100.00 9.00 11 25.00 55.00 27.00 17.5 12.00 40.00 B SR 14-544/S T-15/51 FST D125-12-32-R10 125.00 9.00 13 34.00 65.00 32.00 20.0 12.00 45.00 B SR 14-544/S T-15/51 (1) Number of inserts (or edges for solid tool) (2) Cutting depth maximum (3) For adaptation options, see page 432 For inserts, see pages: QDCT-PDN (565) • QDMT 1205..PDTN-M (565) • QPMT 100408PDTN (561) • XPMT-HQ (563) 409
