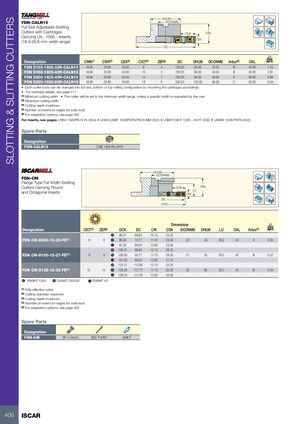

DHUB SLOTTING & SLITTING CUTTERS FDN-CALN15 DCONMS Full Slot Adjustable Slotting Cutters with Cartridges CDX OAL Carrying LN.. 1506... Inserts CW (18.9-25.6 mm width range) DC kg Designation CWN(1) CWX(2) CDX(3) CICT(4) ZEFP DC DHUB DCONMS Arbor(5) OAL FDN D125-1925-32R-CALN15 18.90 25.60 30.00 8 4 125.00 65.00 32.00 B 40.00 1.43 FDN D160-1925-40R-CALN15 18.90 25.60 40.00 10 5 160.00 80.00 40.00 B 50.00 2.61 FDN D200-1925-40R-CALN15 18.90 25.60 54.00 14 7 200.00 92.00 40.00 C 50.00 0.38 FDN D250-1925-60R-CALN15 18.90 25.60 59.00 16 8 250.00 132.00 60.00 C 50.00 6.59 • Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly • For cartridge details, see page 411 (1) Minimum cutting width • The cutter will be set to the minimum width range, unless a specific width is requested by the user (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation options, see page 432 For inserts, see pages: LNKX 1506PN-N PL (554) • LNKX/LNMT 1506PNTN/PN-N MM (553) • LNMT/LNHT 1506...-N HT (555) • LNMW 1506 PNTN (553) Spare Parts Designation FDN-CALN15 CA90 1928-R/L-LN15 DHUB DCONMS FDN-CM Flange Type Full Width Slotting Cutters Carrying Round CDX OAL LU and Octagonal Inserts CW DC DCX Dimensions kg Designation CICT(2) ZEFP DCX DC CW CDX DCONMS DHUB LU OAL Arbor(3) 80.51 68.60 12.15 23.25 FDN CM-D080-12-22-FE(1) 6 6 80.00 72.77 11.70 23.00 22 45 28.2 40 A 0.35 81.20 68.50 12.85 23.60 100.51 88.60 12.15 26.75 FDN CM-D100-12-27-FE(1) 8 8 100.00 92.77 11.70 26.50 27 55 28.5 40 B 0.57 101.20 88.50 12.85 27.10 125.51 113.60 12.15 35.25 FDN CM-D125-12-32-FE(1) 10 10 125.00 117.77 11.70 35.00 32 65 32.0 45 B 0.94 126.20 113.50 12.85 35.60 R90MT 1205 O45MT 050505 R90MT 43 (1) Fully effective cutter (2) Cutting diameter maximum (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation options, see page 432 Spare Parts Designation FDN-CM SR 14-544/S BLD T15/M7 SW6-T 400 ISCAR
