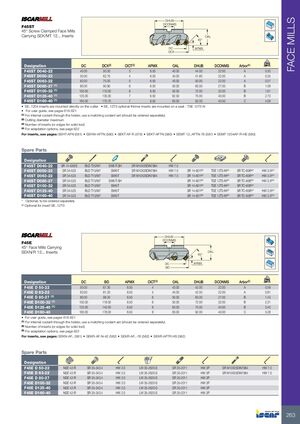

FACE MILLS DHUB DCONMS F45ST 45° Screw Clamped Face Mills Carrying SEK/MT 12... Inserts OAL 45° DC APMX DCX kg Designation DC DCX(2) CICT(3) APMX OAL DHUB DCONMS Arbor(4) F45ST D040-22 40.00 50.00 3 6.50 40.00 44.00 22.00 A 0.30 F45ST D050-22 50.00 62.70 4 6.50 40.00 41.80 22.00 A 0.35 F45ST D063-22 63.00 75.00 5 6.50 40.00 50.00 22.00 A 0.57 F45ST D080-27 (1) 80.00 90.90 6 6.50 50.00 63.00 27.00 B 1.08 F45ST D100-32 (1) 100.00 110.00 6 6.50 50.00 72.00 32.00 B 1.61 F45ST D125-40 (1) 125.00 135.00 7 6.50 62.50 75.00 40.00 B 2.70 F45ST D160-40 (1) 160.00 170.70 7 6.50 63.00 92.00 40.00 C 4.06 • SE..1204 inserts are mounted directly on the cutter • SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N • For user guide, see pages 616-621 (1) For internal coolant through the holder, use a matching coolant set (should be ordered separately) (2) Cutting diameter maximum (3) Number of inserts (or edges for solid tool) (4) For adaptation options, see page 622 For inserts, see pages: SEHT-AFN (581) • SEHW-AFTN (580) • SEKT-AF-R (579) • SEKT-AFTN (580) • SEMT 12..AFTN-76 (581) • SEMT 1204AF-R-HS (580) Spare Parts Designation F45ST D040-22 SR 14-536/S BLD T20/M7 SW6-T-SH SR M10X25DIN7984 HW 7.0 F45ST D050-22 SR 34-523 BLD T15/M7 SW6-T SR M10X25DIN7984 HW 7.0 SR 14-601(a)* TSE 12T3-N(a)* SR TC-606(a)* HW 3.5(a)* F45ST D063-22 SR 34-523 BLD T15/M7 SW6-T SR M10X25DIN7984 HW 7.0 SR 14-601(a)* TSE 12T3-N(a)* SR TC-606(a)* HW 3.5(a)* F45ST D080-27 SR 34-523 BLD T15/M7 SW6-T-SH SR 14-601(a)* TSE 12T3-N(a)* SR TC-606(a)* HW 3.5(a)* F45ST D100-32 SR 34-523 BLD T15/M7 SW6-T SR 14-601(a)* TSE 12T3-N(a)* SR TC-606(a)* F45ST D125-40 SR 34-523 BLD T15/M7 SW6-T SR 14-601(a)* TSE 12T3-N(a)* SR TC-606(a)* HW 3.5(a)* F45ST D160-40 SR 34-523 BLD T15/M7 SW6-T SR 14-601(a)* TSE 12T3-N(a)* SR TC-606(a)* HW 3.5(a)* * Optional, to be ordered separately (a) Optional for insert SE..12T3 DHUB DCONMS F45E 45° Face Mills Carrying SEKN/R 12... Inserts OAL 45° DC APMX BD kg Designation DC BD APMX CICT(2) OAL DHUB DCONMS Arbor(3) F45E D 50-22 50.00 67.30 6.50 4 43.00 42.00 22.00 A 0.59 F45E D 63-22 63.00 81.20 6.50 5 40.00 42.50 22.00 A 0.81 F45E D 80-27 (1) 80.00 98.20 6.50 6 50.00 63.00 27.00 B 1.43 F45E D100-32 (1) 100.00 118.00 6.50 6 50.00 72.00 32.00 B 2.31 F45E D125-40 (1) 125.00 143.00 6.50 6 63.00 75.00 40.00 B 3.40 F45E D160-40 160.00 178.00 6.50 8 63.00 92.00 40.00 C 5.28 • For user guide, see pages 616-621 (1) For internal coolant through the holder, use a matching coolant set (should be ordered separately) (2) Number of inserts (or edges for solid tool) (3) For adaptation options, see page 622 For inserts, see pages: SEKN-AF.. (581) • SEKR-AF-N-42 (582) • SEKR-AF..-76 (582) • SEKR-AFTR-HS (582) Spare Parts Designation F45E D 50-22 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P SR M10X25DIN7984 HW 7.0 F45E D 63-22 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P SR M10X25DIN7984 HW 7.0 F45E D 80-27 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P F45E D100-32 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P F45E D125-40 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P F45E D160-40 NSE 42-R SR 35-343.4 HW 2.0 LW 35-2620-S SR 35-2011 HW 3P 263
