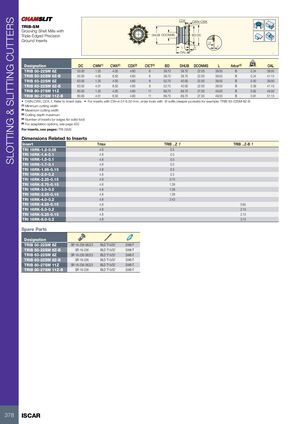

SLOTTING & SLITTING CUTTERS CDX CWN-CWX TRIB-SM d D Grooving Shell Mills with Triple-Edged Precision DHUB DCONMS BD DC Ground Inserts H LF L f f OAL . kg Designation DC CWN(1) CWX(2) CDX(3) CICT(4) BD DHUB DCONMS L Arbor(5) OAL TRIB 50-22SM 6Z 50.00 1.20 4.00 4.80 6 39.70 39.70 22.00 39.00 B 0.24 39.50 TRIB 50-22SM 6Z-B 50.00 4.00 6.50 4.80 6 39.70 39.70 22.00 39.00 B 0.24 41.15 TRIB 63-22SM 8Z 63.00 1.20 4.00 4.80 8 52.70 40.00 22.00 39.00 B 0.40 39.50 TRIB 63-22SM 8Z-B 63.00 4.01 6.50 4.80 8 52.70 40.00 22.00 39.00 B 0.39 41.15 TRIB 80-27SM 11Z 80.00 1.20 4.00 4.80 11 69.70 69.70 27.00 49.00 B 0.92 49.50 TRIB 80-27SM 11Z-B 80.00 4.01 6.50 4.80 11 69.70 69.70 27.00 49.00 B 0.91 51.15 • CWN,CWX, CDX, f, Refer to insert data • For inserts with CW=4.01-6.50 mm, order tools with -B suffix (deeper pockets) for example: TRIB 63-22SM-8Z-B (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Number of inserts (or edges for solid tool) (5) For adaptation options, see page 432 For inserts, see pages: TRI (558) Dimensions Related to Inserts Insert Tmax TRIB ...Z f TRIB ...Z-B f TRI 16RK-1.2-0.05 4.6 0.5 TRI 16RK-1.4-0.1 4.8 0.5 TRI 16RK-1.5-0.1 4.8 0.5 TRI 16RK-1.7-0.1 4.8 0.5 TRI 16RK-1.95-0.15 4.8 0.5 TRI 16RK-2.0-0.2 4.8 0.5 TRI 16RK-2.25-0.15 4.8 0.75 TRI 16RK-2.75-0.15 4.8 1.39 TRI 16RK-3.0-0.2 4.8 1.39 TRI 16RK-3.25-0.15 4.8 1.39 TRI 16RK-4.0-0.2 4.8 2.43 TRI 16RK-4.25-0.15 4.8 0.95 TRI 16RK-5.0-0.2 4.8 2.15 TRI 16RK-5.25-0.15 4.8 2.15 TRI 16RK-6.0-0.2 4.8 3.15 Spare Parts Designation TRIB 50-22SM 6Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 50-22SM 6Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 63-22SM 8Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 63-22SM 8Z-B SR 16-236 BLD T15/S7 SW6-T TRIB 80-27SM 11Z SR 16-236 08223 BLD T15/S7 SW6-T TRIB 80-27SM 11Z-B SR 16-236 BLD T15/S7 SW6-T 378 ISCAR
