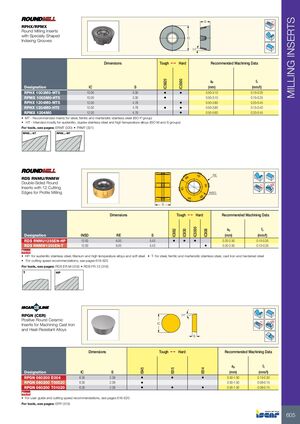

Фрезерные инструменты Iscar 2026 - страница 607

MILLING INSERTS S Rd° RPHX/RPMX Round Milling Inserts with Specially Shaped IC Indexing Grooves 11˚ Dimensions Tough 1 Hard Recommended Machining Data ap fz IC5820 IC5500 Designation IC S (mm) (mm/t) RPHX 1003M0-MT5 10.00 3.30 • • 0.50-3.10 0.15-0.35 RPMX 1003M0-HT5 10.00 3.30 • 0.50-3.10 0.15-0.25 RPHX 1204M0-MT5 12.00 4.78 • 0.50-3.80 0.20-0.45 RPHX 1204M0-HT5 12.00 4.78 • • 0.50-3.80 0.15-0.40 RPMX 1204M0 12.00 4.78 • 0.50-5.60 0.20-0.45 • MT - Recommended mainly for steel, ferritic and martensitic stainless steel (ISO P group) • HT - Intended mostly for austenitic, duplex stainless steel and high temperature alloys (ISO M and S groups) For tools, see pages: ERMT (320) • FRMT (321) RPHX...-HT RPHX...-MT RE RDS RNMU/RNMW Double-Sided Round Rd° Inserts with 12 Cutting Edges for Profile Milling INSD S Dimensions Tough 1 Hard Recommended Machining Data ap fz IC5500 IC882 IC830 IC808 Designation INSD RE S (mm) (mm/t) RDS RNMU1255EN-HP 12.00 6.00 5.43 • • • 0.20-2.50 0.10-0.35 RDS RNMW1255EN-T 12.00 6.00 5.43 • 0.20-2.50 0.10-0.35 New • HP- for austenitic stainless steel, titanium and high temperature alloys and soft steel • T- for steel, ferritic and martensitic stainless steel, cast iron and hardened steel • For cutting speed recommendations, see pages 616-620 For tools, see pages: RDS ER-M (318) • RDS FR-12 (318) T HP RPGN (CER) 11° Positive Round Ceramic Rd° Inserts for Machining Cast Iron IC and Heat-Resistant Alloys S Dimensions Tough 1 Hard Recommended Machining Data ap fz IS45 IS15 IS14 Designation IC S (mm) (mm/t) RPGN 060200 E004 6.35 2.38 • • • 0.50-1.50 0.10-0.30 RPGN 060200 T00520 6.35 2.38 • 0.50-1.50 0.08-0.15 RPGN 060200 T01020 6.35 2.38 • • • 0.50-1.50 0.08-0.15 New • For user guide and cutting speed recommendations, see pages 616-620 For tools, see pages: ERP (319) 605
