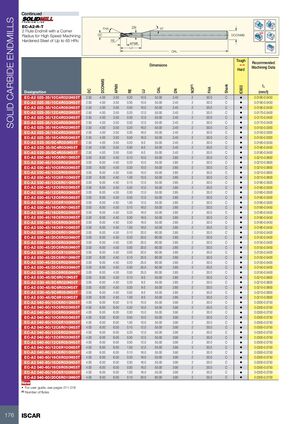

Фрезерные инструменты Iscar 2026 - страница 178

Предыдущая страница Следующая страница

Навигация

Твердосплавные фрезы. Продолжение

EC-A2-R-T

Двухзубая фреза с радиусной кромкой для высокоскоростной обработки закаленной стали твердостью до 65 HRc

Обозначение DC DCONMS APMX RE LU OAL DN NOF(1) FHA Державка IC602 Рекомендуемые данные обработки fz (мм/т)
EC-A2 025-35/10C4R020H55T 2.50 4.00 3.50 0.20 10.0 55.00 2.40 2 30.0 C • 0.0190–0.0450
EC-A2 025-35/10C4R030H55T 2.50 4.00 3.50 0.30 10.0 55.00 2.40 2 30.0 C • 0.0190–0.0450
EC-A2 025-35/10C4R050H55T 2.50 4.00 3.50 0.50 10.0 55.00 2.40 2 30.0 C • 0.0190–0.0450
EC-A2 025-35/12C4R020H55T 2.50 4.00 3.50 0.20 12.0 55.00 2.40 2 30.0 C • 0.0170–0.0400
EC-A2 025-35/12C4R030H55T 2.50 4.00 3.50 0.30 12.0 55.00 2.40 2 30.0 C • 0.0170–0.0400
EC-A2 025-35/12C4R050H55T 2.50 4.00 3.50 0.50 12.0 55.00 2.40 2 30.0 C • 0.0170–0.0400
EC-A2 025-35/16C4R020H55T 2.50 4.00 3.50 0.20 16.0 55.00 2.40 2 30.0 C • 0.0150–0.0300
EC-A2 025-35/16C4R030H55T 2.50 4.00 3.50 0.30 16.0 55.00 2.40 2 30.0 C • 0.0150–0.0300
EC-A2 025-35/16C4R050H55T 2.50 4.00 3.50 0.50 16.0 55.00 2.40 2 30.0 C • 0.0150–0.0300
EC-A2 025-35/8C4R020H55T 2.50 4.00 3.50 0.20 8.0 55.00 2.40 2 30.0 C • 0.0190–0.0450
EC-A2 025-35/8C4R030H55T 2.50 4.00 3.50 0.30 8.0 55.00 2.40 2 30.0 C • 0.0190–0.0450
EC-A2 025-35/8C4R050H55T 2.50 4.00 3.50 0.50 8.0 55.00 2.40 2 30.0 C • 0.0190–0.0450
EC-A2 030-45/10C6R010H55T 3.00 6.00 4.50 0.10 10.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/10C6R020H55T 3.00 6.00 4.50 0.20 10.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/10C6R030H55T 3.00 6.00 4.50 0.30 10.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/10C6R050H55T 3.00 6.00 4.50 0.50 10.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/10C6R100H55T 3.00 6.00 4.50 1.00 10.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/12C6R010H55T 3.00 6.00 4.50 0.10 12.0 55.00 2.85 2 30.0 C • 0.0180–0.0500
EC-A2 030-45/12C6R020H55T 3.00 6.00 4.50 0.20 12.0 55.00 2.85 2 30.0 C • 0.0180–0.0500
EC-A2 030-45/12C6R030H55T 3.00 6.00 4.50 0.30 12.0 55.00 2.85 2 30.0 C • 0.0180–0.0500
EC-A2 030-45/12C6R050H55T 3.00 6.00 4.50 0.50 12.0 55.00 2.85 2 30.0 C • 0.0180–0.0500
EC-A2 030-45/12C6R100H55T 3.00 6.00 4.50 1.00 12.0 55.00 2.85 2 30.0 C • 0.0180–0.0500
EC-A2 030-45/16C6R010H55T 3.00 6.00 4.50 0.10 16.0 55.00 2.85 2 30.0 C • 0.0180–0.0450
EC-A2 030-45/16C6R020H55T 3.00 6.00 4.50 0.20 16.0 55.00 2.85 2 30.0 C • 0.0180–0.0450
EC-A2 030-45/16C6R030H55T 3.00 6.00 4.50 0.30 16.0 55.00 2.85 2 30.0 C • 0.0180–0.0450
EC-A2 030-45/16C6R050H55T 3.00 6.00 4.50 0.50 16.0 55.00 2.85 2 30.0 C • 0.0180–0.0450
EC-A2 030-45/16C6R100H55T 3.00 6.00 4.50 1.00 16.0 55.00 2.85 2 30.0 C • 0.0180–0.0450
EC-A2 030-45/20C6R010H60T 3.00 6.00 4.50 0.10 20.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/20C6R020H60T 3.00 6.00 4.50 0.20 20.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/20C6R030H60T 3.00 6.00 4.50 0.30 20.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/20C6R050H60T 3.00 6.00 4.50 0.50 20.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/20C6R100H60T 3.00 6.00 4.50 0.00 20.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/25C6R010H60T 3.00 6.00 4.50 0.10 25.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/25C6R020H60T 3.00 6.00 4.50 0.20 25.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/25C6R030H60T 3.00 6.00 4.50 0.30 25.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/25C6R050H60T 3.00 6.00 4.50 0.50 25.0 60.00 2.85 2 30.0 C • 0.0150–0.0400
EC-A2 030-45/8C6R010H55T 3.00 6.00 4.50 0.10 8.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/8C6R020H55T 3.00 6.00 4.50 0.20 8.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/8C6R030H55T 3.00 6.00 4.50 0.30 8.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/8C6R050H55T 3.00 6.00 4.50 0.50 8.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 030-45/8C6R100H55T 3.00 6.00 4.50 1.00 8.0 55.00 2.85 2 30.0 C • 0.0210–0.0600
EC-A2 040-60/10C6R010H55T 4.00 6.00 6.00 0.10 10.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/10C6R020H55T 4.00 6.00 6.00 0.20 10.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/10C6R030H55T 4.00 6.00 6.00 0.30 10.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/10C6R050H55T 4.00 6.00 6.00 0.50 10.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/10C6R100H55T 4.00 6.00 6.00 1.00 10.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/12C6R010H55T 4.00 6.00 6.00 0.10 12.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/12C6R020H55T 4.00 6.00 6.00 0.20 12.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/12C6R030H55T 4.00 6.00 6.00 0.30 12.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/12C6R050H55T 4.00 6.00 6.00 0.50 12.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/12C6R100H55T 4.00 6.00 6.00 1.00 12.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/16C6R010H55T 4.00 6.00 6.00 0.10 16.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/16C6R020H55T 4.00 6.00 6.00 0.20 16.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/16C6R030H55T 4.00 6.00 6.00 0.30 16.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/16C6R050H55T 4.00 6.00 6.00 0.50 16.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/16C6R100H55T 4.00 6.00 6.00 1.00 16.0 55.00 3.90 2 30.0 C • 0.0300–0.0750
EC-A2 040-60/20C6R010H60T 4.00 6.00 6.00 0.10 20.0 60.00 3.90 2 30.0 C • 0.0300–0.0700

Новое

Руководство пользователя см. на страницах 211–218

(1) Количество зубьев
